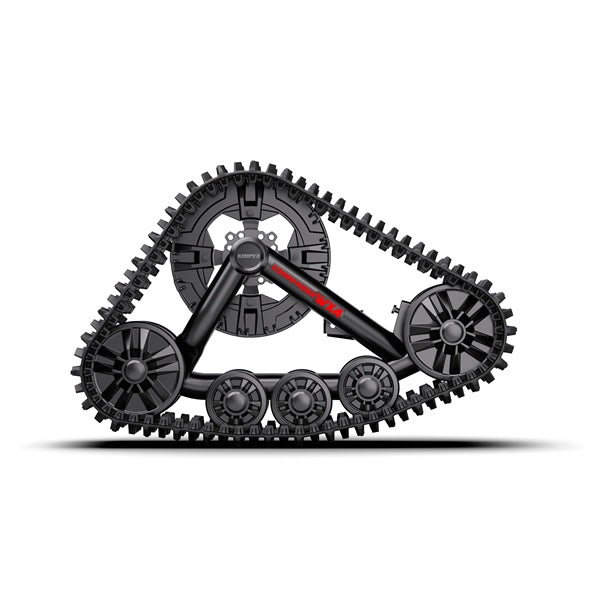

COMMANDER COMMANDER WX4 (4/110-4/115-4/137) 493301

To install tracks on your UTV, you need:

Don’t limit yourself anymore, equip your UTV with the Commander WX4.

Push the limits of adventure with the WX4. This track system transforms your UTV to take you farther than ever, with your friends and all your gear. And it delivers an extra dose of adrenaline along the way.

Step 1

• Choose your WX4 Track kit

Step 2

• Select the proper track adapter (BOM1) depending on your UTV model.
• It is recommended to browse the website using the Search “by vehicle” search tool.

Step 3

• Select the proper Front anti-rotation (BOM2) and rear (BOM3).
• It is recommended to browse the website using the Search “by vehicle” search tool.

Learn more about product design:

• 17 tooth (431,8mm) sprocket

• Aggressive track profile
• HD tensioner: Quick & easy to use
• Pronounced attack angle helps to clear obstacles
• Wheels contact patch coated with rubber: Prevents ice from sticking
• System without slider shoe for all season performance
• Improved axle bearing for greater durability
• Triangulated frame composed of robust 2.5” (64 mm) steel tubing

Specifications:

• Applications: 500cc and above ATVs / Light to medium UTVs
• Width: 318 mm / 12.5” front, 356 mm / 14” rear
• Length: 2460 mm / 97” front, 2970 mm / 117” rear
• Weight: (without mount kit) 91 lb. / 41 kg front, 112 lb. / 51 kg rear
• Frame material: Steel
• Lug height: 25 mm / 1” front, 33 mm / 1.3” rear
• Drive type: Internal
• Flotation surface: 6% higher at the front and 10% higher at the rear
• Ground clearance: Increase of 145 mm / 5.5”
• Speed loss: 35%
• Initial installation time: More than 3 hours
• Subsequent installation time: 1 hour

Use:

• Snow: deep, moderate, path and springtime
• Off Snow: marshland, mud, sand, dirt road and gravel

Notes for the DPS module :

The DPS module gives you the real speed of your vehicle while driving. Here are the codes to be used depending on the vehicle you own:

• Commander = 715 007 338
• Defender = 715 007 338
• Maverick = 715 007 338
