DALTON CLUTCH KIT MAVERICK X3 TURBO'R' DBM X3T

DALTON CLUTCH KIT MAVERICK X3 TURBO'R' DBM X3T

Regular price $725.99 CAD
Regular price Sale price $725.99 CAD
Sale Sold out
Quantity
DALTON CLUTCH KIT MAVERICK X3 TURBO'R' DBM X3T

CLUTCH KIT FOR CAN-AM MAVERICK X3 TURBO R/RR (17-21) WITH 28"-32"+ TIRES

Improved performance for oversized tires and terrain conditions. Adjustability to calibrate for different tires and situations.

The Can Am X3 Turbo R is calibrated fairly well for stock tires with typical trail riding conditions.

This kit is primarily developed to correct the “rate of shift” of the belt and help recover power lost from adding oversized tires or riding in soft terrain. Proper clutch calibration from this kit allows better back shifting of the belt when the vehicle senses load, and improves belt grip and performance in those situations.

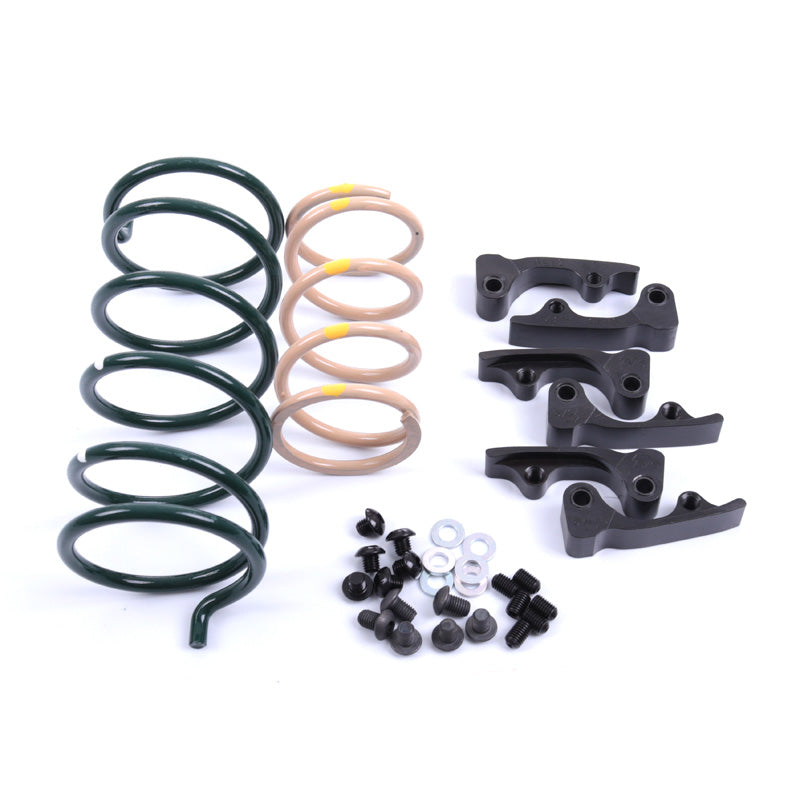

There are new springs included for both the primary and secondary clutches, as well as a complete set of new adjustable flyweights and adjustment hardware. We sometimes find on this higher HP vehicle that the stock flyweights are getting sticky and not moving freely due to the bushing design. The new flyweights in this kit come with an improved flyweight bushing/thrust washer design that offers better durability and more fluid pivoting action.

The instructions include a “flyweight setup guide” that explains how to set the flyweights for different tires and situations. This adjustability means that if you switch to a different tire size or application in future the kit can be adjusted to suit.

Belts are expensive for this model and proper clutch calibration can help a lot with belt life. Sometimes different belts can change RPM and have different characteristics. Factory belts have proven superior on this model and this kit is calibrated in the instructions to that factory stock belt.

Question: Is this kit also for the 4-seat Max version?

Answer: We have not tested this kit in a Max version of the vehicle. Sometimes, 4-seat versions have different requirements for the kit itself or the settings of the kit due to different body weight, gearing or stock factory clutch calibration parts. We have since developed a unit for the Max for applications with oversized tires, and you can find it under 472-DBMSR4.

Question: What if I have had an aftermarket company modify the ECU programming, and may or may not have modified exhaust and have a higher level of boost or horsepower?

Answer: We have not tested the different levels of aftermarket tuning and power modifications for this application. All testing and development of this kit was done on a stock vehicle in different situations and tire sizes. Sometimes different HP levels require a different “rate of shift” of the belt, and adjustments made to clutching. The kit is, however, easily adjusted and has adjustable flyweights. In many turbo vehicles, it seems that when higher boost programs are added, the flyweights sometimes need to be adjusted slightly heavier. Individual applications will vary. Professional racers with modified horsepower may require testing and adjustment.

Turbo R and RR only, not for X3 900 non-turbo or lower HP versions of X3.
