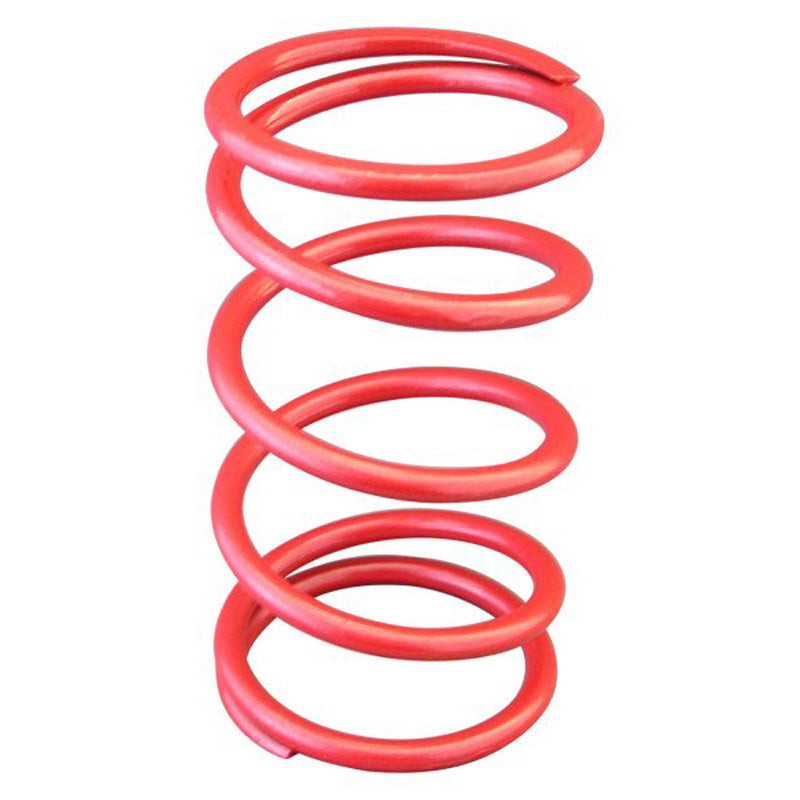

DALTON SECONDARY SPRING METALLIC RED DPSSMR

DALTON SECONDARY SPRING METALLIC RED DPSSMR

Regular price $45.99 CAD
Regular price Sale price $45.99 CAD
Sale Sold out
Quantity
DALTON SECONDARY SPRING METALLIC RED DPSSMR

DaltonPro springs are manufactured from high quality chrome silicon wire to exacting tolerances, stress relieved, and shot peened for long-lasting durability.

Note: Some aftermarket companies compare loads at different test height. It is important that you are comparing at the same load test height when comparing spring pressure to others.

Important: Compare compression spring loads at the same test height and torsion spring loads at the same angle. Values measured at different heights or angles are not directly comparable.

Application / Model Group Spring Type Part Number Colour / Description Load / Rating 1 Load / Rating 2
Yamaha secondary springs / Sidewinder-related tuning options Secondary spring DPSS-YBO1 Dalton Black/Orange 8.5 kg torsion to 70 ° 31 kg @64 mm / 43 kg @49 mm / 52 kg @39 mm
Yamaha secondary springs / Sidewinder-related tuning options Secondary spring DPSS-YBT2 Dalton Black/Tan 10 kg @50 °, 11 kg @60 °, 12 kg @70 ° 29 kg @64 mm / 44 kg @49 mm / 57 kg @39 mm
Yamaha secondary springs / Sidewinder-related tuning options Secondary spring DPSS-YPW3 Dalton Pink/White 8.5 kg torsion to 70 ° 19 kg @64 mm / 29.5 kg @49 mm / 45 kg @39 mm
TEAM secondary / RZR Secondary spring DPSS-GY/R4 Dalton Grey/Red 96 lb @2.5 in 190 lb @1.25 in
TEAM secondary / RZR Secondary spring DPSS-GY/W4 Dalton Grey/White 88 lb @2.5 in 165 lb @1.25 in
TEAM secondary Secondary spring DPSS-GY/V4 Dalton Grey/Violet 115 lb @2.5 in 205 lb @1.25 in
Suzuki Vinson / Arctic Cat 500 Secondary spring DPSS-P/Y5 Dalton Plain/Yellow
Suzuki 700/750 King Quad / Arctic models with Suzuki engine only Secondary spring DPSS-O5 Dalton Orange
Ski-Doo secondary clutch springs Secondary spring DPSS-BN/W6 Dalton Brown/White 130 lb @61 mm 210 lb @35.2 mm
Ski-Doo secondary clutch springs Secondary spring DPSS-PK6 Dalton Pink 170 lb @61 mm 280 lb @35.2 mm
Ski-Doo secondary clutch springs Secondary spring DPSS-R6 Dalton Red (RER) 205 lb @61 mm 310 lb @35.2 mm
Ski-Doo secondary clutch springs Secondary spring DPSS-R/W6 Dalton Red/White 245 lb @61 mm 340 lb @35.2 mm
Ski-Doo secondary clutch springs Secondary spring DPSS-R/Y6 Dalton Red/Yellow 218 lb @61 mm 305 lb @35.2 mm
Ski-Doo secondary clutch springs Secondary spring DPSS-Y/GY6 Dalton Yellow/Grey 192 lb @61 mm 335 lb @35.2 mm
Ski-Doo secondary clutch springs Secondary spring DPSS-Y/O6 Dalton Yellow/Orange 225 lb @61 mm 330 lb @35.2 mm
Ski-Doo 4-stroke torsion-style secondary models Secondary spring DPSS-B/Y/G7 Black with Yellow/Green 54 lb @61 mm 80 lb @35.2 mm
Ski-Doo 4-stroke torsion-style secondary models Secondary spring DPSS-B/Y/R7 Black with Yellow/Red 80 lb @61 mm 125 lb @35.2 mm
Polaris EBS only Secondary spring DPSS-B4 Dalton Black 90 lb @2.5 in 145 lb @1.25 in
Outlander / Renegade 800; 28 in+ competition mud tires Secondary spring DPSS-Y/B8 Dalton Yellow/Black 147 lb @2.9 in 205 lb @1.96 in
Outlander / Renegade 800; 28 in+ competition mud tires Secondary spring DPSS-Y/B8 Dalton Yellow/Black 147 lb @2.9 in 205 lb @1.96 in
Outlander / Renegade 1000, 2013 Commander, Maverick; 29.5 in+ extreme mud tires Secondary spring DPSS-B/V8 Dalton Black/Violet
Grizzly / Rhino 4x4 Utility; Rhino 700 with 26 in+ tires; Rhino 660 with 28 in+; Grizzly 700 with 28 in+ aggressive mud tires Secondary spring DPSS-M/R9 Dalton Metallic Red
Earlier P-85 secondary with torsion springs; not TEAM version clutches Secondary spring DPSS-B/R/BL10 Dalton Black/Red-Blue Wire dia. .192 48 lb @2.5 in
86 lb @1.375 in
Earlier P-85 secondary with torsion springs; not TEAM version clutches Secondary spring DPSS-B/R/S11 Dalton Black/Red-Silver Wire dia. .187 44 lb @2.5 in
77 lb @1.375 in
DUV P9XP clutch kit; 29.5 in+ mud tires; some 28 in extreme mud or sand use Secondary spring DPSS-GY/W12 Dalton Grey/White
BOSS secondary Secondary spring DPSS-GY/O4 Dalton Grey/Orange 90 lb @2.5 in 175 lb @1.25 in
500 cc Secondary spring DPSS-BZ8 Dalton Bronze 85 lb @2.9 in 105 lb @1.96 in
400 cc Secondary spring DPSS-GN8 Dalton Green 63 lb @2.9 in 75 lb @1.96 in
2016+ Arctic Procross secondary clutch Secondary spring DPSS-O/B13 Dalton Orange/Black 175 lb @2.6 in 245 lb @1.6 in
2016+ Arctic Procross secondary clutch Secondary spring DPSS-O/L13 Dalton Orange/Lime 130 lb @2.6 in 230 lb @1.6 in
2016+ Arctic Procross secondary clutch Secondary spring DPSS-O/T13 Dalton Orange/Tan 135 lb @2.6 in 215 lb @1.6 in
2016+ Arctic Procross secondary clutch Secondary spring DPSS-O/V13 Dalton Orange/Violet 185 lb @2.6 in 265 lb @1.6 in
2016+ Arctic Procross secondary clutch Secondary spring DPSS-O/W13 Dalton Orange/White 160 lb @2.6 in 220 lb @1.6 in
2016 Polaris RZR models / RZR S 1000 conversion setups Secondary spring DPSS-B/BL-T14 Dalton Black/Blue with tang
2016 Polaris RZR models / RZR S 1000 conversion setups Secondary spring DPSS-B/R-T14 Dalton Black/Red with tang
2013+ RZR 570 with DUV P570E kit; 28 in+ extreme mud tires or high elevation Secondary spring DPSS-GY/R15 Dalton Grey/Red
2012-2015 Procross secondary clutch Secondary spring DPSS-G/BZ16 Dalton Green/Bronze 152 lb @2.75 in 258 lb @1.5 in
2012-2015 Procross secondary clutch Secondary spring DPSS-G/GD16 Dalton Green/Gold 185 lb @2.75 in 320 lb @1.5 in
2012-2015 Procross secondary clutch Secondary spring DPSS-G/S16 Dalton Green/Silver 165 lb @2.75 in 285 lb @1.5 in

1 Based on Sidewinder turbo owner/tuner requests; updated version noted by Dalton.

2 Heavier spring for certain tall gearing or higher load conditions.

3 Variant of Red YMR spring; less initial compression than Red YMR.

4 Compare spring pressure at the same load test height.

5 Torsional spring with modified torsion tang location.

6 Dalton does not provide complete snowmobile clutch setup recommendations.

7 Compare at same load test height.

8 Secondary spring; use only when specified in Dalton set-up guide.

9 Heavier load rating than metallic blue.

10 More side pressure but same torsion force as Polaris blue.

11 Slightly more torsion and side pressure than Polaris silver/blue.

12 Optional spring; use when set-up guide calls for it.

13 2016+ secondary is different diameter/fit vs previous models.

14 Used in some clutch kit setups for different tires/conditions.

15 Optional spring; use only when designated.

16 Designed for 2012-2015 Procross secondary clutch.
