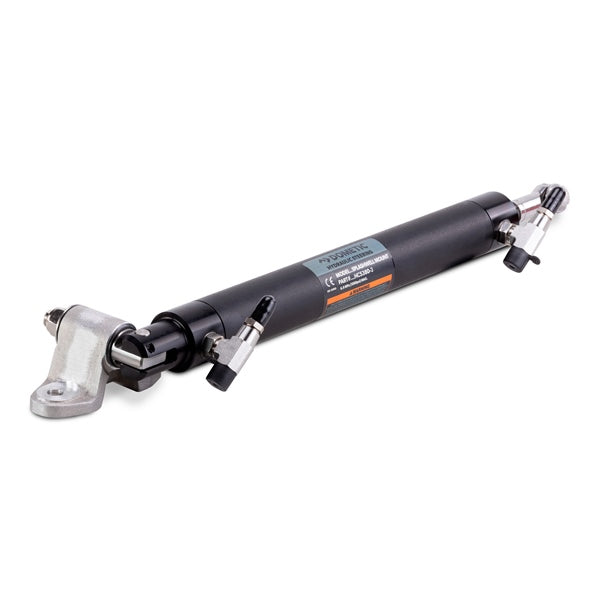

DOMETIC CYLINDER SPLASHWELL O/B HC5380-3

The splashwell mount cylinder (part no. HC53803) can be used on all engines complying with ABYC P17/NMEA/BIA standards provided they have a threaded attachment hole (3/8" - 24 UNF thread) in the steering arm. Not suitable for use on engines fitted with factory power steering.

• Light duty alternative to front & side mount cylinders.
• Unbalanced cylinder with 5.5/6.5 turns lock to lock.
• Fits engines with/without support (steering) tube.
• Single & multiple engine capability.
• Total power to 600 Hp in counter rotating application. (see order guide)
• Transom or hull mounted cylinder.
• Speeds to 60 mph maximum (97 km/h).
