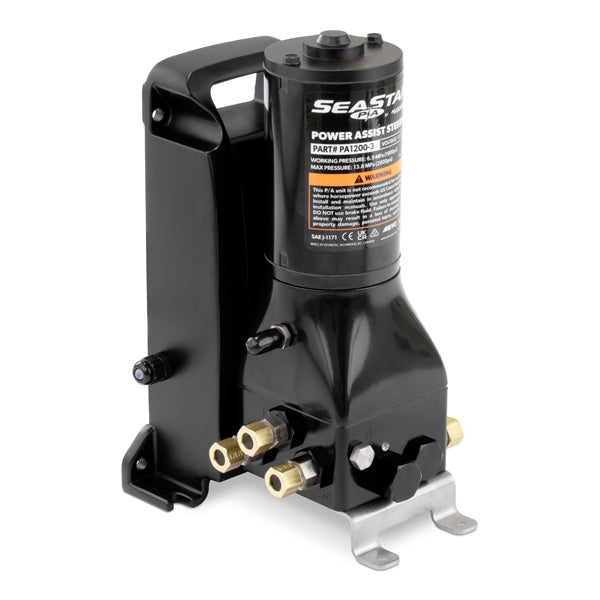

DOMETIC HYDRAULIC POWER SYSTEM SIERRA PA1200-3

The Dometic SeaStar Power Assist Steering System is comprised of two circuits: a hand operated manual system, which is the control element, and a hydraulic power pump, which is the working element. The manual system consists of a helm pump with internal relief and check valves, and a built in reservoir. The power system is an electronically controlled hydraulic pump that boosts the fluid being sent from the helm pump to the steering cylinder, resulting in much easier effort at the wheel. Features

• Easy installation, suitable for wall or floor mount
• Dramatically increases steering comfort
• Reduced wheel effort
• Compatible with Dometic SeaStar Power Purge system and autopilots
• Wiring harness included
• ABYC, CE, NMMA, ISO 10592 Approved
• Automatically recognizes system voltage (12 V or 24 V)
