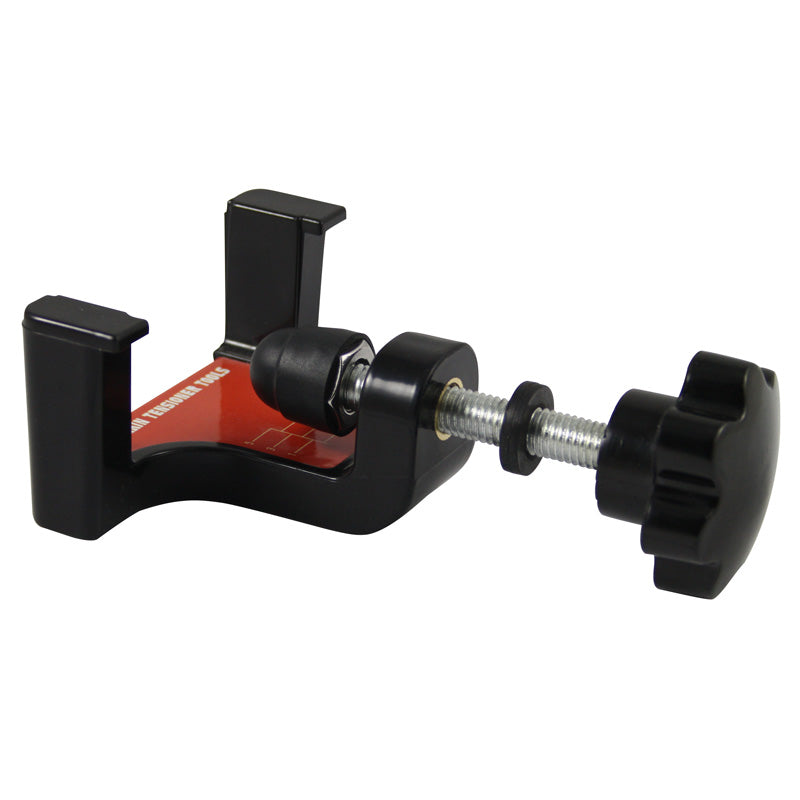

ITL CHAIN TENSIONER TOOL 3651001

1- TABLE READING AND CHAIN MEASUREMENT
Referring to the motorcycle manufacturer’s manual, find the ideal
range of motion for the chain in mm or inches. Measure the size
of the chain and refer to the table for tool adjustment.
2- TOOL ADJUSTMENT
Align bottom of acorn nut with required setting line and adjust
the washer until it touches the black base.
3- CHAIN TOOL INSTALLATION
Hang tool on the chain and tighten until the washer touches the black base.
4- CHAIN ADJUSTMENT
While keeping the wheel centered, tighten the chain until it is tight.
