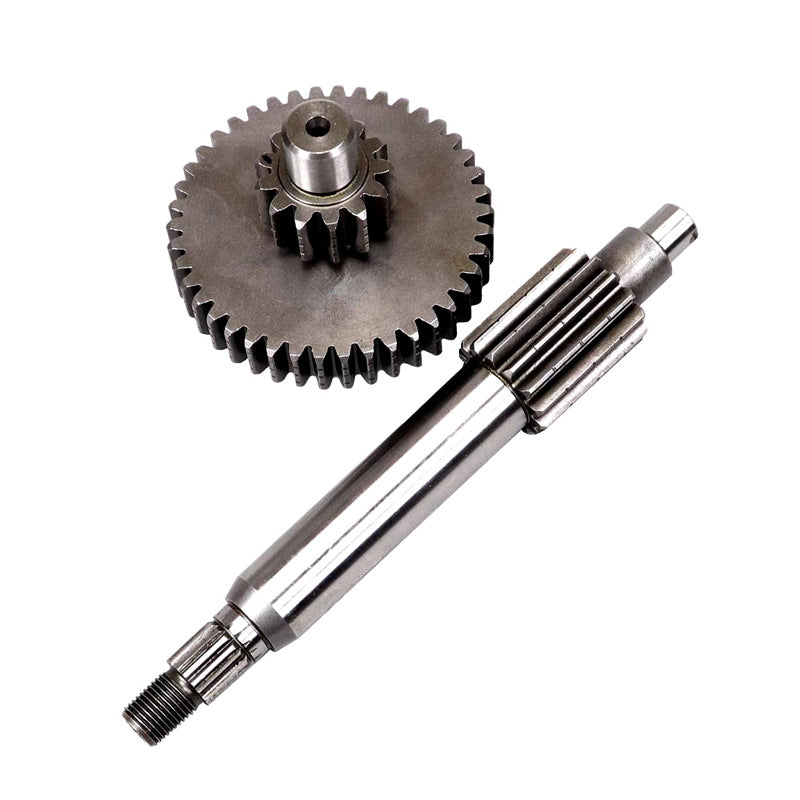

JASIL GEAR KITS BW'S NEXT RATIO 14/42 6010202

Primary transmission shaft and intermediate gear Jasil MBK Booster, Nitro...

New primary transmission adaptable for scooter 50cc MBK Booster, Nitro, Yamaha Bws... with vertical and horizontal Minarelli engine.

This kit includes

• 1 x primary shaft (clutch shaft)
• 1 x intermediate shaft sprocket

Technical characteristics and dimensions

• Brand: Jasil (Top Racing)
• Number of teeth of the primary shaft: 14
• Total Shaft Length: 152mm
• Outside diameter of the shaft on the crankcase side: 10 mm
• Clutch Side Shaft Outer Diameter: 17mm
• Clutch Side Shaft Thread Diameter: 10 mm
• No threading: 1.00
• Number of teeth of the intermediate pinion: 42 and 13
• Intermediate Shaft Length: 56 mm
• Intermediate Shaft Outer Diameters: 10mm and 14mm
