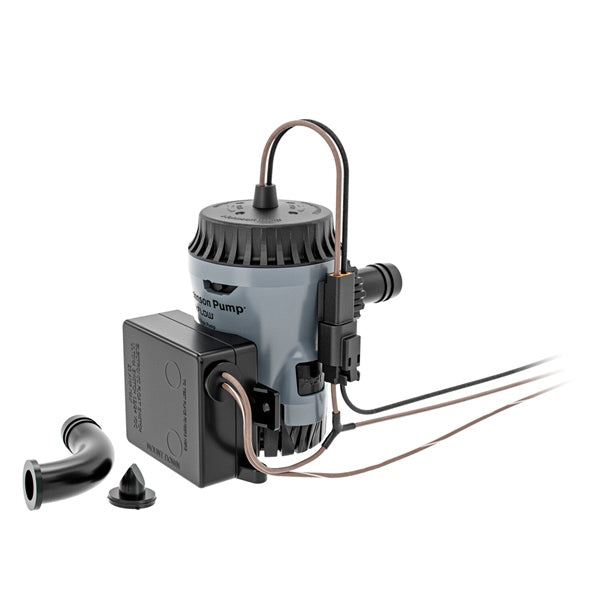

JOHNSONPUMP BILGE PUMP AQUA VOID ULTIMA COMBO 500GPH 10-13635-01

With its industry-first quick-change motor connection and new reinforced click-in basket, this bilge pump simplifies cleaning and installation, and it's convenient and efficient. Its enhanced motor ensures reliability and performance in any condition.

This pump is combined with the non-clogging electronic Ultima Switch for automatic operation. Johnson Pump's groundbreaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades. The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.

Features:

• Heightened efficiency with an increased flow rate - high-flow impeller design
• Quick-change motor connection enjoy quick and hassle-free cartridge motor changes or capacity upgrades. Industry-first and only cartridge motor pump with included harness connection requiring no cutting and splicing of wires
• Water-cooled motor for long service intervals
• Compact, all-in-one motor/Impeller unit with stainless steel (316) Shaft
• No tools are needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses
• Easy-to-install dura-port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
• Meets the international standard, ISO 8849 marine
• Molded T-Slot - Easy Installation with switches
• This cartridge pump is combined with the Ultima switch for automatic operation

Specifications:

• Voltage: 12V
• Amperage:
  • 500 GPH (10-13635-01): 2.7A
  • 800 GPH (10-13636-01): 3.7A
• Fuse:
  • 500 GPH (10-13635-01): 3.5A
  • 800 GPH (10-13636-01): 5A
• Hose Connection: 3/4"
• Wire Size: 16 GA, TAC
• Body: ABS
• Dura Port: PA66/GF - Nylon
• Shaft: 316 Stainless Steel
• Shaft Seal: Nitrile Rubber
• Motor Cartridge: PC-ABS
