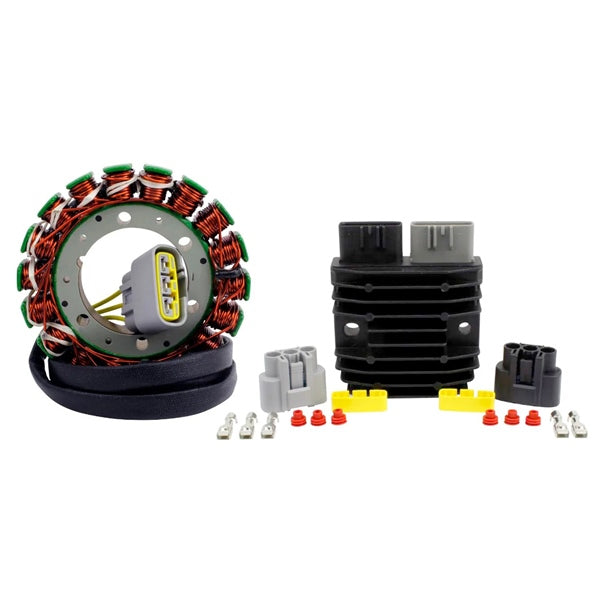

KIMPEX HD STATOR + REGULATOR HON KIMPEXHD SF-900-008892

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Connectors included
• All products shipped are tested

This kit REQUIRES a DC powered CDI box (not included), the original will no longer function with this conversion.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Rubber grommet included

Series Regulator:

WHY USE SERIES ENHANCED TECHNOLOGY?

• Runs much cooler than the Shunt and MOSFET voltage regulator rectifier.
• Power only flows through the electrical components when the battery is charging.
• Allows the stator to have lower current flowing when not used, extending its lifetime.
• The regulator is easier to mount because it’s smaller than the OEM one.

With enhanced technology design

This product is an advanced technology that lowers operating temperatures for extended longevity and better performance than the OEM part.

THE SERIES VOLTAGE REGULATION TECHNOLOGY

RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators. A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely. This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

Voltage regulator rectifier

THE ULTIMATE SOLUTION TO YOUR REGULATOR RECTIFIER PROBLEMS! It is time to update or replace your voltage regulator with the advanced series type. It runs cooler than all OEM, Shunt or MOSFET, diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Higher grade of electric components

We even include the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
