KOSO DL-02R GP STYLE TACHOMETER-BLACK CASING FOR HARLE BA555B16-HD

KOSO DL-02R GP STYLE TACHOMETER-BLACK CASING FOR HARLE BA555B16-HD

$247.46 CAD
$247.46 CAD
Sale Sold out
KOSO DL-02R GP STYLE TACHOMETER-BLACK CASING FOR HARLE BA555B16-HD

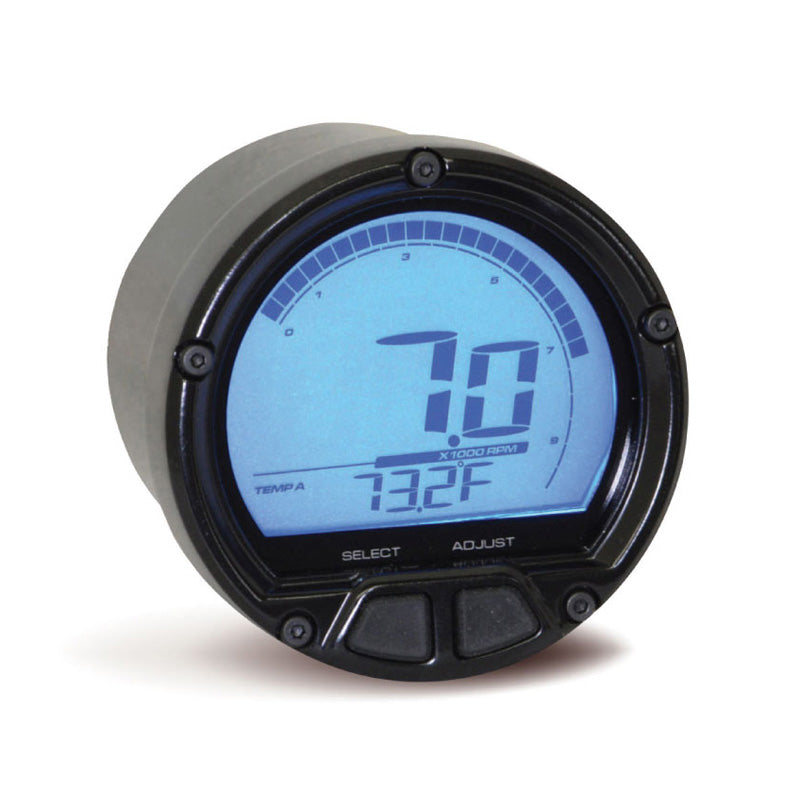

DL-02R Tachometer

The DL-02R Tachometer has been developed with the latest technology. Its unique casing allows the adjust buttons to be right in the front. This makes the DL-02R Tachometer a very convenient instrument to adjust. The big digits and blue backlight make the DL-02R Tachometer a very easy meter to read even at night. Available in black and chrome casing.

Digital tachometer Display range: 0~20,000 RPM Display unit: 100 RPM
Tachometer level

Display range: 0~10 000, 15 000 or 20 000 RPM

  • 0~10,000 RPM, 30 segment bar graph Display unit: 333 RPM for each segment
  • 0~15,000 RPM, 30 segment bar graph Display unit: 500 RPM for each segment
  • 0~20,000 RPM, 30 segment bar graph Display unit: 666 RPM for each segment
Display internal < 0.5 Second RPM
Stroke/piston setting
  • 2 Stroke: 1, 2, 3, 4 pistons
  • 4 Stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons
Thermometer Display range: 0~250ºC or 32~482ºF Display unit: 0.1ºC or ºF
Display internal: < 0.5 Second RPM
Clock 24H
Supply voltage DC 12V
Effective temp. range -10 ~ 60ºC (14 ~ 140ºF)
Meter standard JIS D 0203 S2

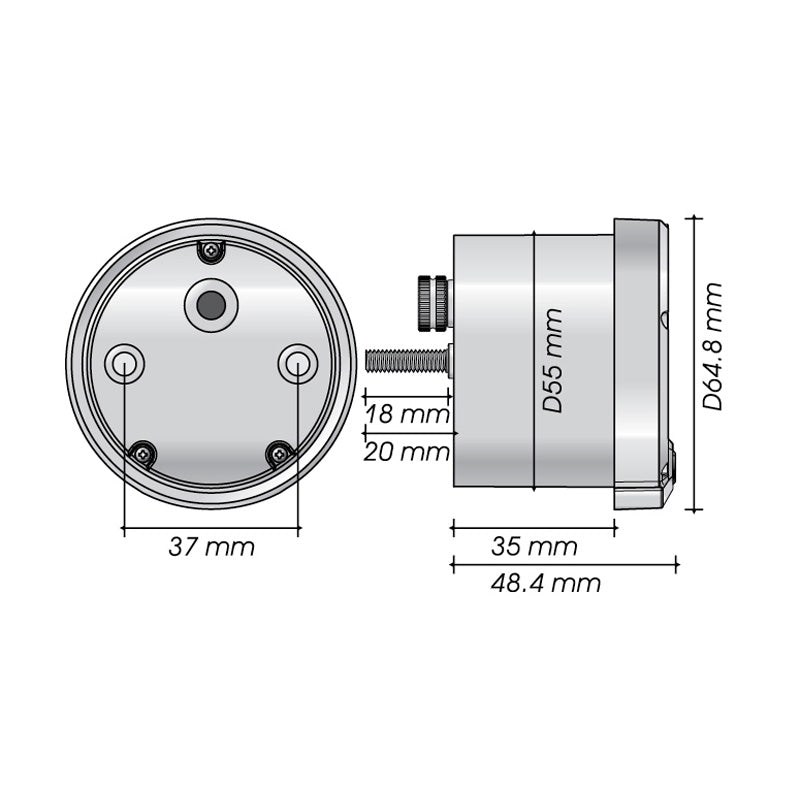

Meter size (DxH) D55 X 48.4 mm
