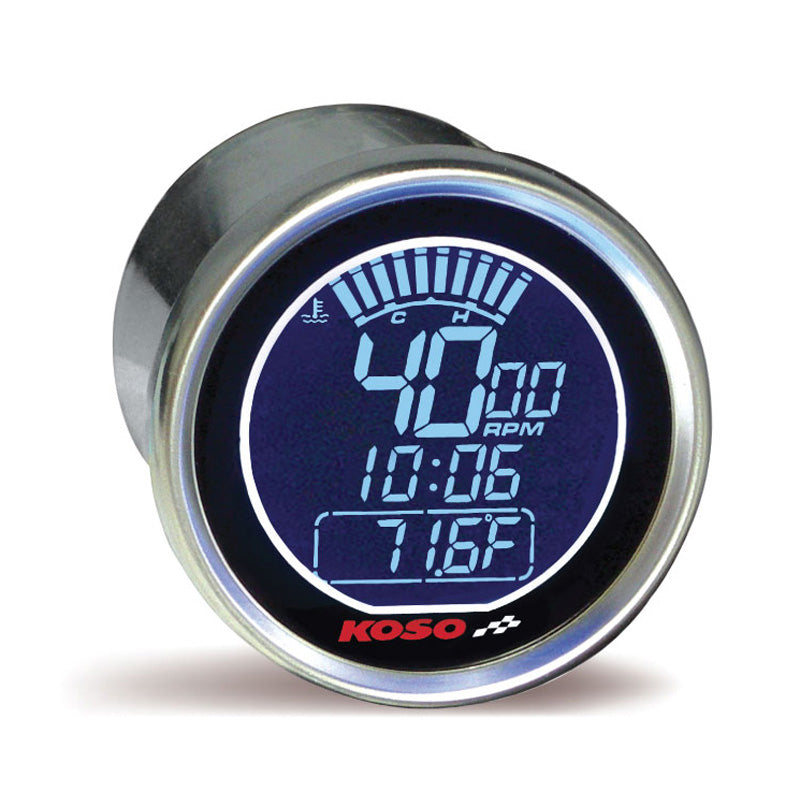

KOSO DL STYLE HARLEY-DAVIDSON TACHOMETER 55MM BA552B80-HD

DL STYLE | Tachometer | for Harley-Davidson®

The DL style meter serie is built using a reverse LCD screen that gives it a unique look as they become completely dark when turned off. Another great feature of this meter is its compatibility with the Koso chrome bullet casing.

​

 Specifications
(R= Range U=Unit)

• Tachometer
  R: 0 ~ 20,000 RPM | U: 100 RPM
• Tachometer level
  R: 0 ~ 10,000 / 15,000 / 20,000 RPM (alt)
  U: 30 levels
• Stroke / piston setting
  2 stroke: 1, 2, 3, 4 pistons
  4 stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons
• Temperature level
  R: 68 ~ 248 °F (0 ~ 120°C)
  U: 1 level= 50°F (10 °C)
• Clock
  24 H format
• Effective temperature
  R: 14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage
  DC 12 V
• Sensor included
  Passive speed sensor : BF019005
