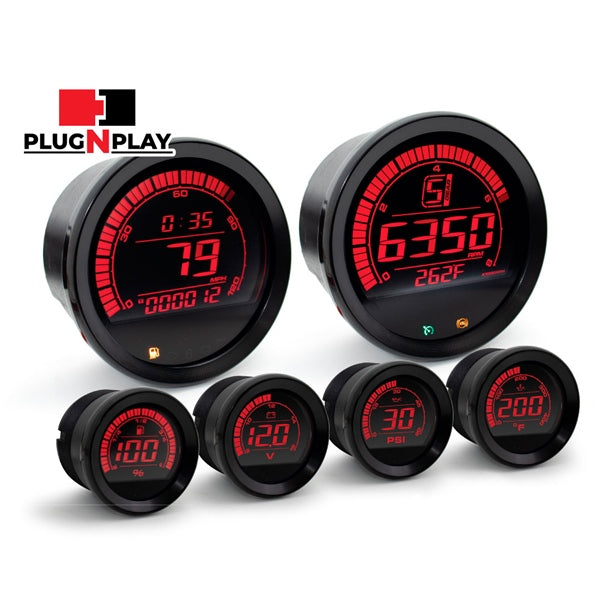

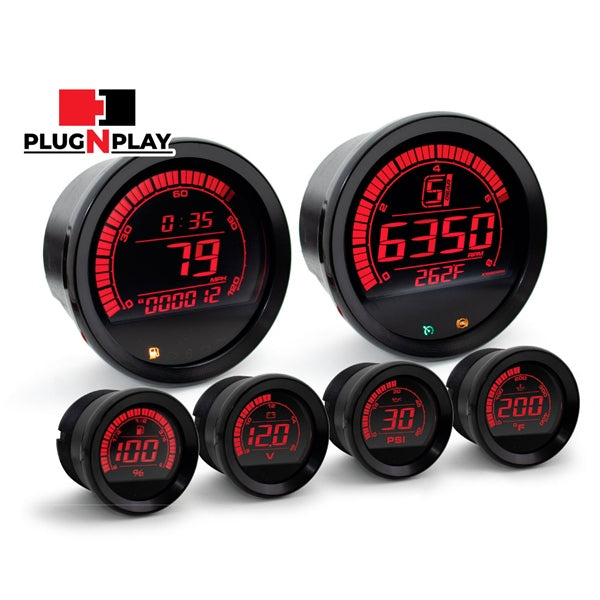

Our R&D department worked hard to create something new and modern for Harleys. The engineers responded by coming up with a complete plug & play system to replace the stock meters. No need to drill holes or to rewire the meters, they will all fit directly in the OEM dash and connectors. Both silver and black bezel kits feature a dual color changeable LCD display (red or blue) for a custom look. The 6 piece kit includes a 4’’ speedometer, 4’’ tachometer with gear position, 2’’ oil pressure meter, 2’’ fuel level meter, a 2’’ volt meter. This meter is a great addition to all Harley FLHT, FLHX, and FLTR from 2004 to 2013.

4? Instrument Specifications

Speedometer

• Range: 0 ~ 225 MPH (0 ~ 360 km/h)
• Unit: 1 MPH or km/h (alternative)

Speedometer Levels

• Range: 0 ~ 120 MPH (0 ~ 200 km/h)
• Unit: ± 2.5 MPH (± 4.2 km/h)

Odometer

• Range: 0 ~ 999,999 miles (km)
• Unit: 1 mile (km)

Tripmeter A/B

• Range: 0 ~ 9,999.9 miles (km)
• Unit: 0.1 mile (km)

Clock

• Format: 12 H or 24 H

Indicator Lights

• Neutral
• Anti-theft
• Check engine
• Volt
• Low fuel

Power

• DC 12V

Effective Temperature Range

• 14 ~ 140 °F (-10 ~ 60 °C)

4? Tachometer

Digital Tachometer

• Range: 0 ~ 8,000 RPM

Tachometer Levels

• Range: 0 ~ 8,000 RPM
• Unit: ± 166 RPM

Engine Temperature

• Range: 14 ~ 255 °F (-17 ~ 123 °C)

Gear Indicator

• N, P, R, 1, 2, 3, 4, 5, 6

Indicator Lights

• Cruise control
• ABS

Power

• DC 12V

Effective Temperature Range

• 14 ~ 140 °F (-10 ~ 60 °C)

2? Oil Pressure Meter

Oil Pressure Indicator

• Range: 0 ~ 60 PSI
• Unit: 1 PSI

Oil Pressure Warning

• Range: 5 ~ 60 PSI
• Unit: 0.1 PSI

Power

• DC 12V

Effective Temperature Range

• 14 ~ 140 °F (-10 ~ 60 °C)

2? Fuel Level Meter

Fuel Meter

• Range: 0 ~ 100%
• Unit: 1%

Power

• DC 12V

Effective Temperature Range

• 14 ~ 140 °F (-10 ~ 60 °C)

2? Volt Meter

Volt Meter

• Range: DC 8 ~ 16 V
• Unit: DC 1 V

Power

• DC 12V

Effective Temperature Range

• 14 ~ 140 °F (-10 ~ 60 °C)

2? Ambient Air Temperature Meter

Ambient Air Temperature Meter

• Range: 0 ~ 120 °F
• Unit: 1 °F

Ambient Air Temperature Warning

• Range: 15 ~ 65 °F
• Unit: 1 °F

* Celsius temperature is displayed only when used in the 6-piece kit.

Power

• DC 12V

Effective Temperature Range

• 14 ~ 140 °F (-10 ~ 60 °C)
