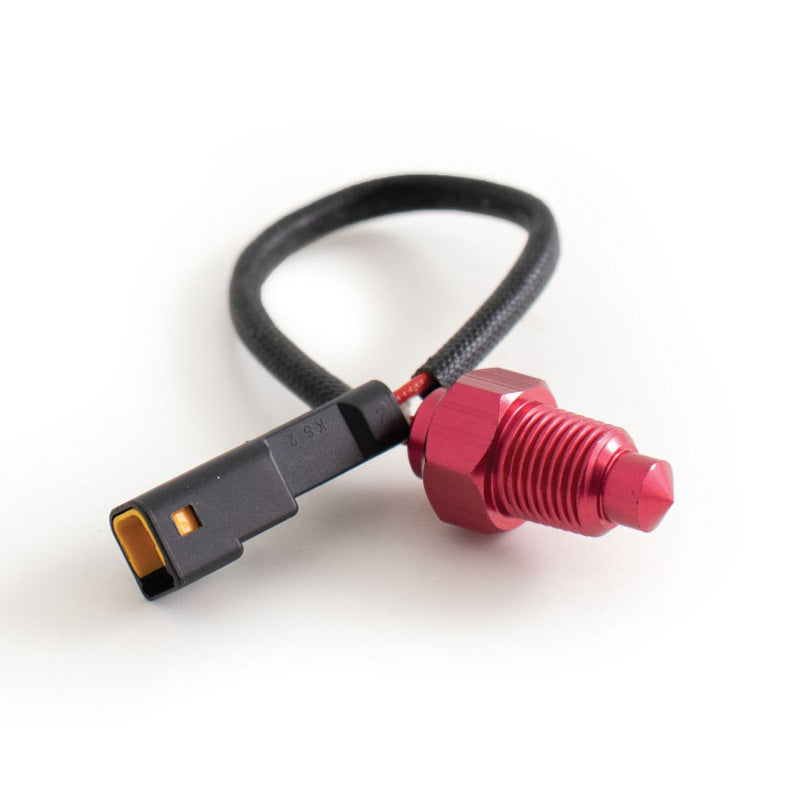

KOSO METER SENSOR P 1/8 X 28 (0-250O C / JST ) BF030000

DB-03R | Multifunction meter

The DB-03R is a multifunction meter with a modern casing that provides necessary critical readings. The DB-03r features all standard indicators needed to operate a vehicle on the street as well as 3 adjustable RPM/TACH scales to choose from in the settings. The DB-03R also features a three colours changeable backlight. Other functions include: Speedometer, odometer, trip meter, temperature, voltage and fuel level.

 Specifications

(R= Range U=Unit)

• Speedometer
• R: 0 ~ 225 MPH (0 ~ 360 km/h U: MPH or km/h)
• Odometer
  R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
• Tripmeter A/B
  R: 0 ~ 999.9 miles (km) | U: 0.1 miles (km)
• Total hour meter R: 0 ~ 99,999 H | U: 1 H
• Hour meter A/B
  R: 0 ~ 999.9 H | Unit: 0.1 H
• Tire circumference
  R: 300 ~ 2,500 mm | U: 1 mm Sensitive point: 1 ~ 20
• Tachometer R:
  10,000 RPM (1 level = 166 RPM)
  12,000 RPM (1 level = 200 RPM)
  15,000 RPM (1 level = 250 RPM)
• RPM warning/shift‑light
  R: 1,000 ~ 15,000 RPM | U: 100 RPM
• Warning
  Light on (F‑OFF) | Flash (F‑ON)

• Maximum RPM record
  R: 0 ~ 10,000/12,000/15,000 RPM
• RPM input signal number setting
  R: 0.5, 1 ~ 24
• RPM input pulse
  R: HI‑ACT (positive wave pulse)
  LO‑ACT (negative wave pulse)
• Volt meter
  R: DC 8 ~ 18 V
  Flashing warning when the voltage is lower than DC 11.5 V or higher than DC 15.5 V
• Thermometer
  R: 32 ~ 482 °F (0 ~ 250 °C) U: 0.1 °F or °C (alternative)
• Over temperature warning
  R: 140 ~ 482°F (60 ~ 250°C) | U: 1°F (°C)
• Top temperature record
  R: 0 ~ 482°F (250°C)
• Fuel meter
  R: 6 levels | U: 1 level = 16.6%
• Fuel resistance
  R: 100 Ω/250 Ω/510 Ω/1,200 Ω/SW
