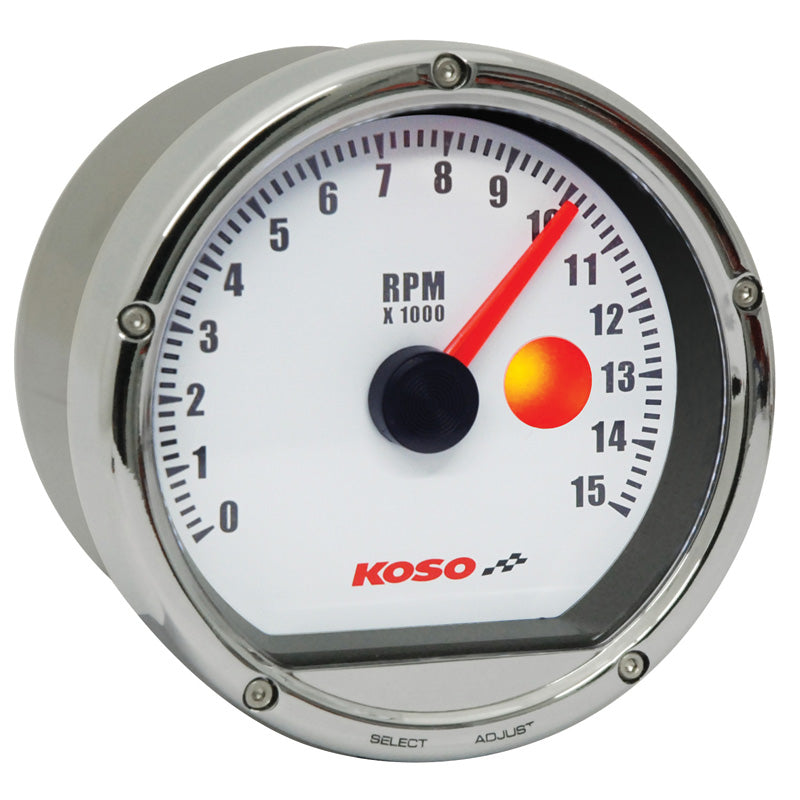

KOSO TNT-01R TACHO 15K RPM SHIFT LIGHT-WH.FACE / WH.C BA035140

TNT-01R | 15 000 Tachometer | with shift light – chrome/white

Built with the best components and strongest stepper motor on the market, this TNT‑01R tachometer is the perfect addition for all motorcycles. Its large dial face and backlight make it easy to read all day long. Available in black dial face with black casing and white dial face with chrome casing.

 Specifications
(R= Range U=Unit)

• Tachometer
  R: 0 ~ 15,000 RPM

• Shift light
  R: 0 ~ 15,000 RPM
  U: 500 RPM

• Warning
  Light on / Flash

• Internal display
  < 0.5 second
• RPM input signal number
  R: 0.5, 1 ~ 6
• RPM input pulse
  R: HI‑ACT (positive wave pulse)
  LO‑ACT (negative wave pulse)
• Backlight brightness
  R: 1/5 (darkest) ~ 5/5 (brightest)
• Effective temperature range
  14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage
  DC 12 V
