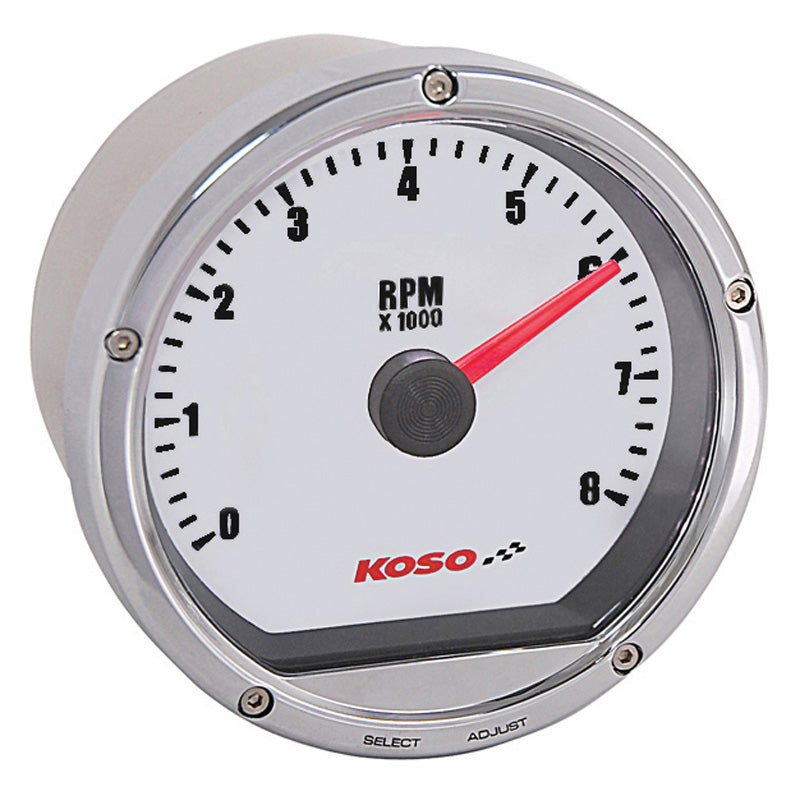

KOSO TNT-01R TACHOMETER WHITE FACE/CHR CASING-METRIC-C BA035103

TNT-01R Tachometer - 8 000 RPM for Metric Motorcycles

Built with the best components and strongest stepper motor on the market, this TNT-01R Tachometer is the perfect addition for all metric motorcycles. Its large dial face and backlight make it easy to read all day and night. Available in black or chrome casing.

Specifications
(R= Range U=Unit)

• Tachometer
  R: 0 ~ 8,000 RPM
• Internal display
  < 0.5 second
• RPM input signal number
  R: 0.5, 1 ~ 6
• RPM input pulse
  R: HI‑ACT (positive wave pulse)
  LO‑ACT (negative wave pulse)
• Backlight brightness
  R: 1/5 (darkest) ~ 5/5 (brightest)
• Effective temperature range
  14 ~ 140 °F (‑10 ~ 60 °C)
• Effective voltage
  DC 12 V
