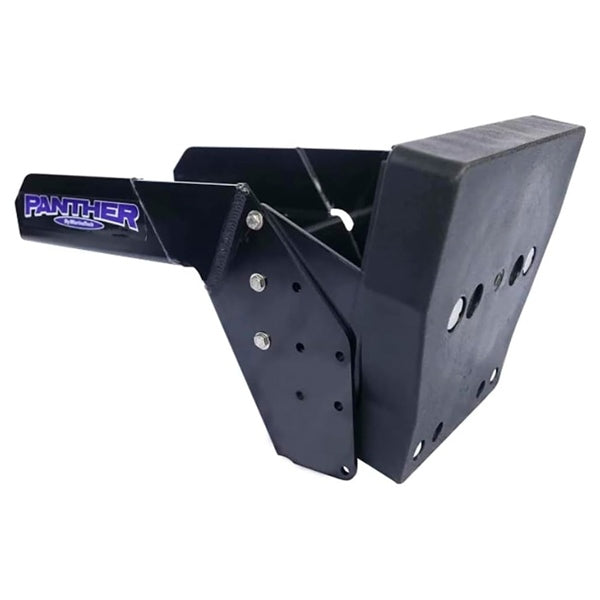

PANTHER MOTOR BRACKET PLATFORM 550030

Built extra-tough and extra-wide for auxiliary motors. Mounting board is 2” thick weatherproof and maintenance-free polypropylene. Adjustable for long or short shaft engines. Position trim adjustment available by moving bolts on bracket. Rated for outboards up to 20 HP.

Specifications:

• Style: Adjustable 3 vertical running positions, 4” vertical travel
• Material: Powder coated aluminum body with polypropylene board
• Included Equipment: Motor safety cable
• Requires: Mounting hardware stainless steel nuts & bolts
• Setback: 9 3/4” in the top position and 12” in the lowest position
• Base footprint: approx. 12” x 12”
• Mounting holes: 8 pairs
• Motor mount pad size: 11.5” wide x 10.750” high
