PANTHER MOTOR BRACKET STATIC PANTHER 550405
PANTHER MOTOR BRACKET STATIC PANTHER 550405
Regular price
$476.99 CAD
Regular price
Sale price
$476.99 CAD
Quantity
Couldn't load pickup availability

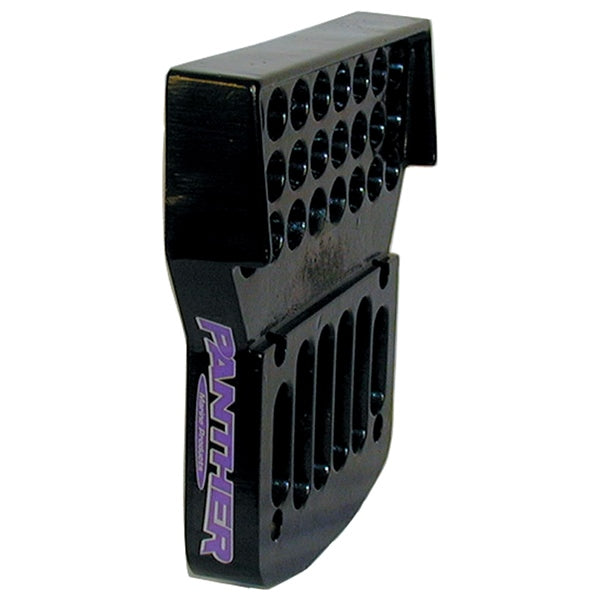

This plate offers a sturdy and secure mounting area for your trolling motor clamps. Applicable to both two and four stroke motors, up to 35hp or 263 lbs.
The plate is designed so the lip of the top, wider portion rests on the gunwale, the motor can be then clamped to the plate, and a composite spacer block is included to ensure a solid connection.
Made of 713 cast aluminum and protected with heavy primer and black powder coat paint. This plate is ideal for mounting long shaft motors on a short shaft transoms because the plate sets the motor 4” higher on the transom.
Dimensions:
The plate is designed so the lip of the top, wider portion rests on the gunwale, the motor can be then clamped to the plate, and a composite spacer block is included to ensure a solid connection.
Made of 713 cast aluminum and protected with heavy primer and black powder coat paint. This plate is ideal for mounting long shaft motors on a short shaft transoms because the plate sets the motor 4” higher on the transom.
Dimensions:
- Overall dimensions: 11.50" x 9.75” x 2"
- Hole spacing: Across 6” between holes, down 3.5” between holes, top holes are 6.5” from top of mounting plate
- Setback: Approx. 2”
