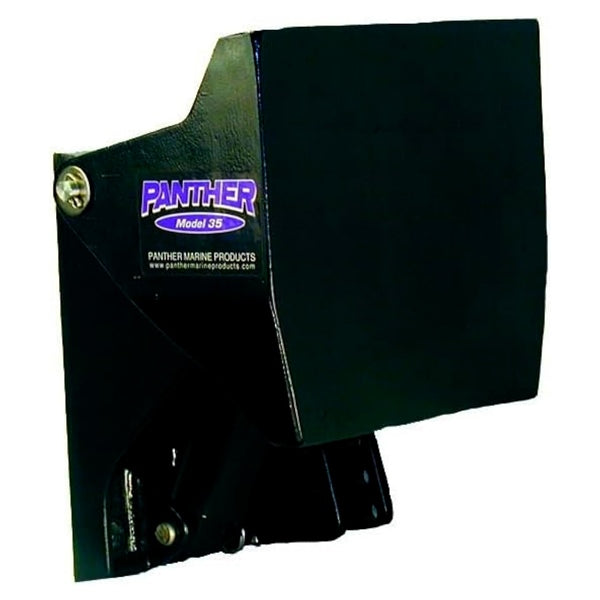

PANTHER TILT & TRIM PRO SERIES 35 PANTHER 550035

This heavy-duty bracket easily handles auxiliary outboards up to 35hp or 150 pounds. Kicker motors are supported in any position with this durable design, featuring a 12 volt actuator that you control with a remote on a 12 foot cable. The Model 35 is the only kicker motor lift with a convertible setback. This unit will tilt your motor approximately 60 degrees.

The Model 35 is the only kicker motor lift with a convertible setback; this unit can be adjusted to 8 or 13 inches of setback, making it ideal for inboards, I/Os, jet-drives, and outboards when over the transom mounting is unavailable. Made of 713 cast aluminum. protected with durable black powder coat paint.

To provide adequate support for your Panther bracket, the transom side of the bracket must be fully covered by the boat’s transom.

Motor plate dimensions:

• Height: 10-1/8"
• Width: 11-3/8"

Transom plate dimensions:

• Height: 11"
• Width: 10"
