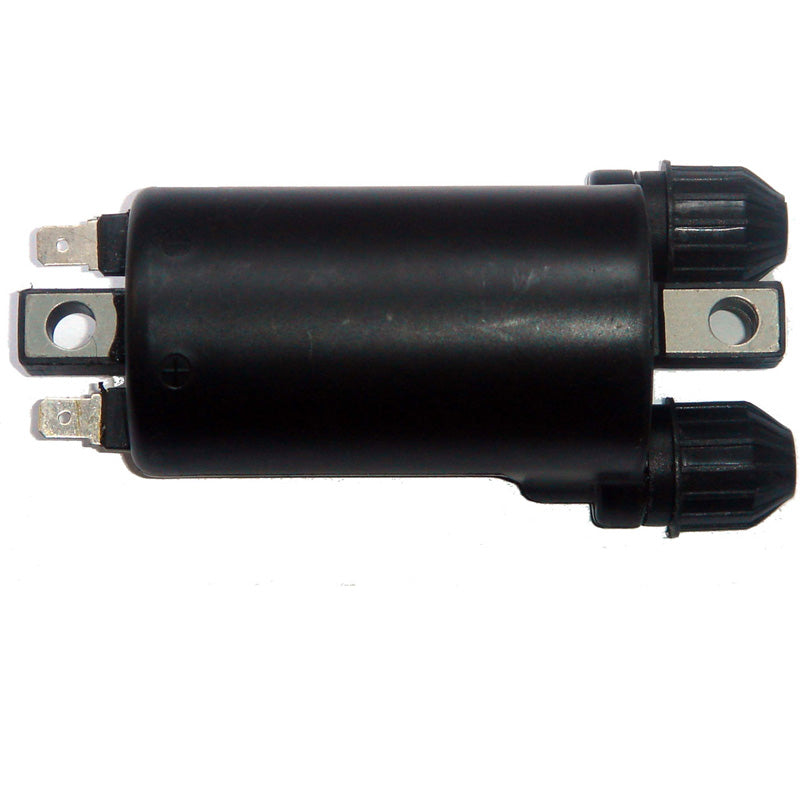

RMS EXT IGN COIL HON 4-CYL BIKE WITH 2 COILS 66-18 RM06033

RMS EXT IGN COIL HON 4-CYL BIKE WITH 2 COILS 66-18 RM06033

Brand new external ignition coil 12 volts

PLEASE READ THIS FIRST!! DO NOT ASSUME THIS COIL WILL WORK FOR YOUR BIKE JUST BECAUSE YOUR MODEL IS LISTED IN THIS AD
If you have a 4 cylinder bike that has 2 coils OR a two cylinder bike with one coil, and each coil has two spark plug wire outputs, this coil will work!

• You must re-install your OEM spark plug cap(s).
• Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install.
• Highest grade lamination materials.
• All products shipped are tested.

NOTE: Our Client used this coil while repairing many models. In some circumstances you may need to modify the way the coil is mounted to the bike, but at this price it is a very inexpensive alternative to purchasing a coil costing twice as much from the Dealer!

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Bracket center to bracket: 102 mm

Resistance:
2.42 ohm+/- 12%
11.5~12 k-ohm
12 Volts

Warning:

Please note : This coil will work fine for many Honda fitments, but is physically larger than the OEM coil (102mm between mounting holes, please compare to your original). It will require modifying your original mounting bracket or relocating the coil to fit correctly. This applies to Honda OEMs:

• 30510-KT7-003
• 30510-KT7-013
• 30510-KT7-023
• 30510-MM5-003
• 30510-MW0-003

Which contain many Honda motorcycle fitments from 1987-2007. Please be sure you understand the modification before purchasing for these fitments, thank you!
