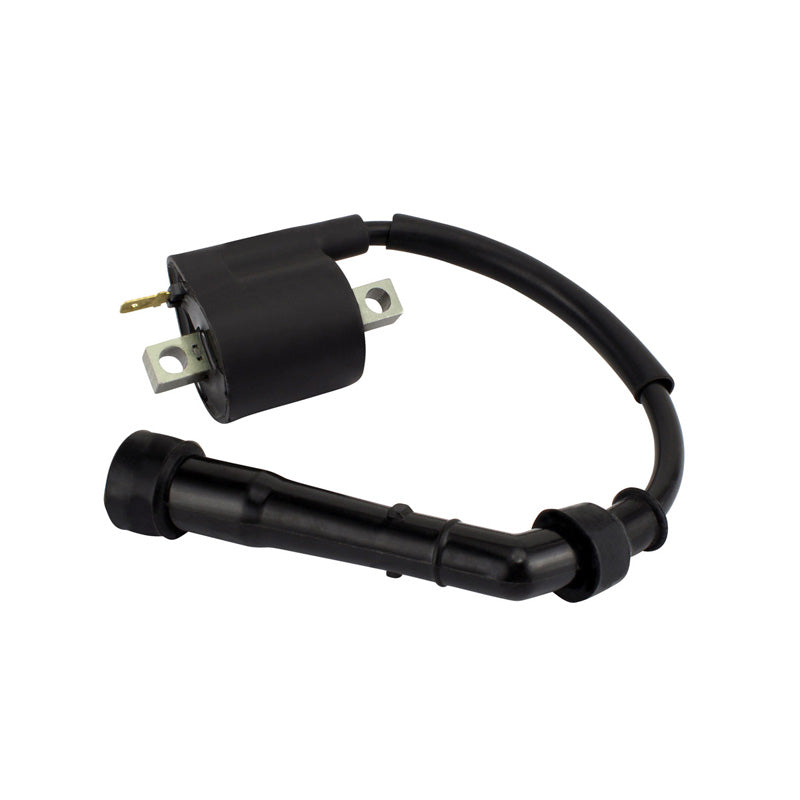

RMS EXT IGN COIL SUZUKI DR-Z|LT-Z400 00-24 RMS060-108285

Brand new aftermarket external ignition coil with spark plug cap

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Spark plug cap included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Width: 46 mm
Length: 66 mm
Height: 38 mm
Wires length: 180 mm
Fixation holes center to center: 55 mm
Primary Resistance: 0.9 ohms
Secondary Resistance without cap: 6.6k ohms
Secondary Resistance with cap: 16.9k ohms

Warning:

This is an external ignition coil and spark plug cap assembly. Here are the OEMs related to those components:

External Ignition Coil OEM:

• 33410-09F00

Spark Plug Cap OEMs:

• 33510-05C00
• 33510-27A11
• 33510-48B10

Always double check our pictures & fitments against the part you physically have on the vehicle
