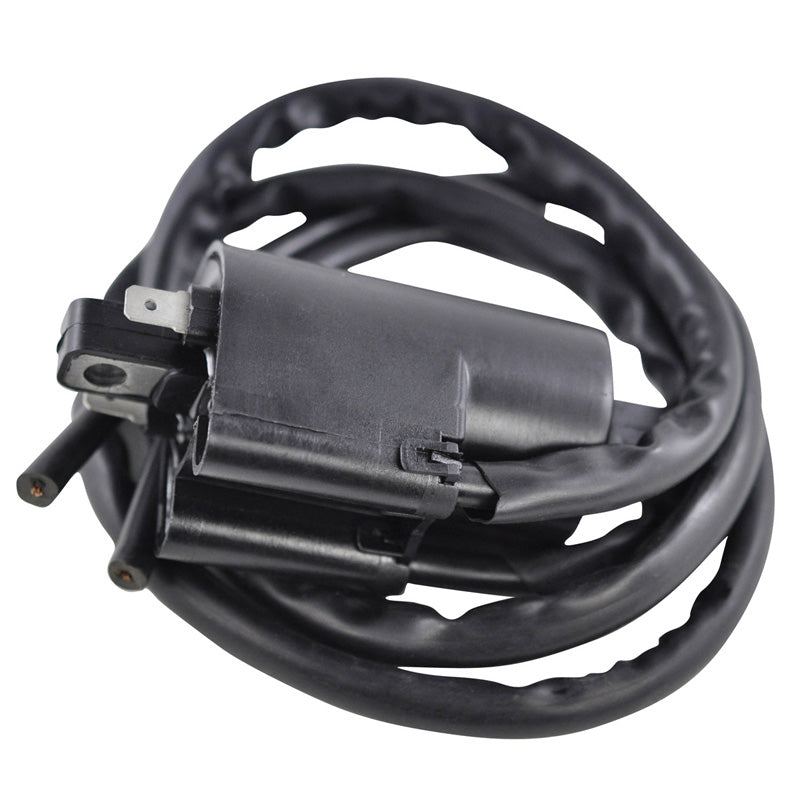

RMS EXT IGN COIL YAM ROAD STAR 1700 08-14 RM06188

Brand New Aftermarket External Ignition Coil

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Width: 95 mm
Length: 150 mm
Height: 50 mm
Wires length: 375 mm
Fixation holes center to center: 90 mm
Primary resistance: 2.8 ohms +/-20%
Secondary resistance : 13.8 ohm +/-20% (200K)

Fitment notice:

Please note : There are two different external ignition coil used for the 2008-2014 Road Star models. The main difference between the two are the length of the wires and the primary resistance. Please look at our specifications section
