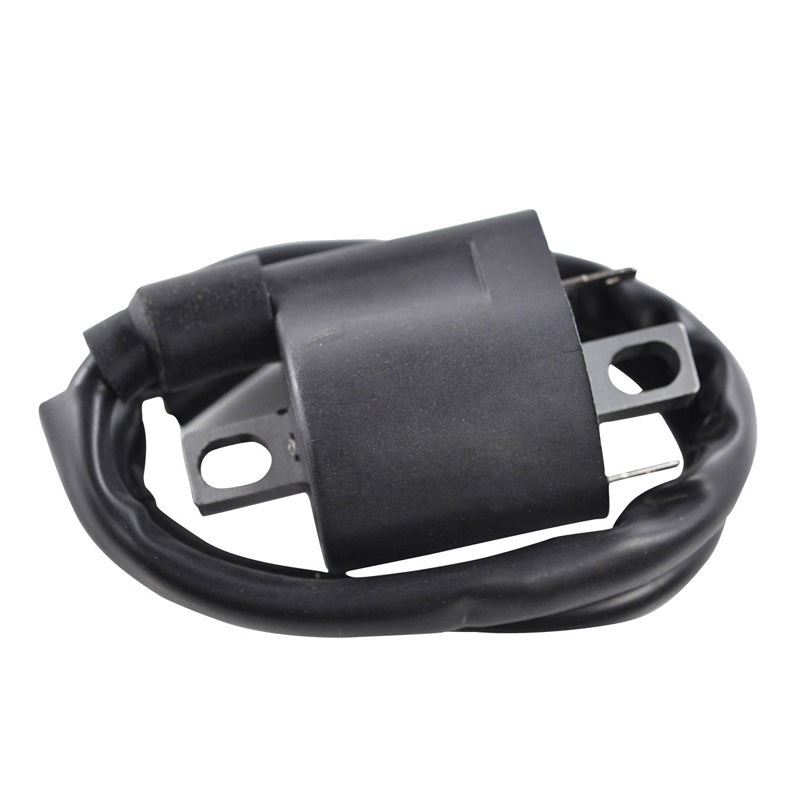

RMS EXT IGN COIL YAM ROADLINER|YFM|YXC|YXM700 06-22 RM06047

Brand new external ignition coil

• You must re-install your OEM spark plug cap(s).
• Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install..
• Highest grade lamination materials..
• All products shipped are tested..

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Width: 45 mm
Length: 39 mm
Height: 35 mm
Wires length: 400 mm
Fixation holes center to center: 56 mm
Resistance 1 : 0.4 ohms
Resistance 2 : 9.8k ohms

Fitment notice:

There are two possible ignition coils for the Roadliner and Stratoliner 2006-2014 models.
Always check in the 'Fits models' section and please compare to your original part before buying.
