RMS INNER ROTOR HON XR50/70R|ZR50R|CRF50F 94-16 RM40003

RMS INNER ROTOR HON XR50/70R|ZR50R|CRF50F 94-16 RM40003

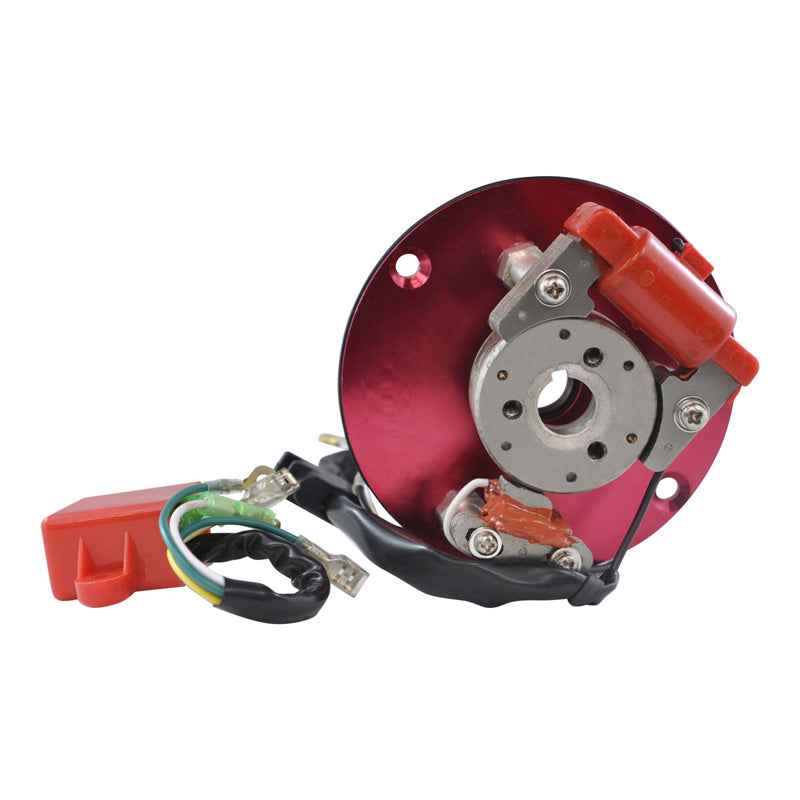

Brand New Inner Rotor Kit

• Includes Flywheel, Stator, Stator Base, and CDI Box
• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator and Stator Plate:

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included

Flywheel:

• Eliminate the weight of your flywheel and let your motor really twist like a 2 stroke
• This unit is good up to 15 000 RPM's

CDI Box:

• Enhanced timing curve, increased rev limiter (approximately 1000 rpm)
• Higher grade of electronic components
• The Quality exceeds the OEM equipment
• Connector included

Specifications:

Dimensions Stator:
Interior diameter : 17mm
Exterior diameter : 115mm
Thickness : 6mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 225mm & 260mm
Length of pickup coil's wire to grommet : 100mm
Fixation holes center to center back plate: 95mm

Other specifications :
Number of wires : 2
Number of plugs : 2
Number of pins : 2

Wire to wire resistance :
Pickup : White to Ground = 61 ohms +/-20%
Source : Black to Ground = 608 ohms +/-20%

Dimensions Flywheel:
Exterior Diameter: 50mm
Interior Diameter: 15mm
Thickness: 25mm
Fixation holes center to center: 24mm

Dimensions CDI Box :
Height: 25mm
Length: 38mm
Width: 37mm
Wires length: 140mm

Other specifications:
Number of plugs: 5
Number of pins: 5
Number of wires: 5
