• RMS KIT A-C 375/400 TBX|TRV 02-07 RM23024
1 1

RMS KIT A-C 375/400 TBX|TRV 02-07 RM23024

RMS KIT A-C 375/400 TBX|TRV 02-07 RM23024

$250.99 CAD
$250.99 CAD
Sale Sold out
RMS KIT A-C 375/400 TBX|TRV 02-07 RM23024

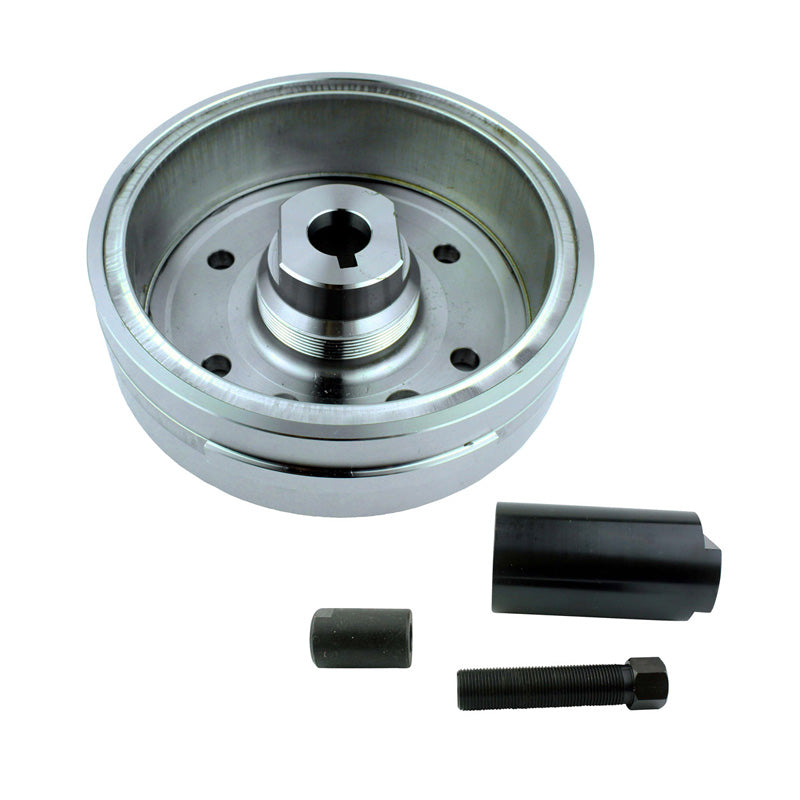

Brand new Kit Magneto Flywheel + Puller

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested
Magneto flywheel rotor

RMSTATOR is offering a new replacement flywheel with stronger magnetsfor your Suzuki and Kawasaki, this flywheel can be used as a direct replacement to the OEM.

We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm's.

Flywheel Puller
  • 50 MM x 1.5 Right Hand Female
  • Brand new flywheel puller

    • PLEASE CHECK IF YOUR MAKE/MODEL IS COMPATIBLE IN THE "ALSO FITS" TAB BEFORE BUYING

Why our RM11502 flywheel is improved

2002-2007 Suzuki Eiger 400 and 2003-2008 Arctic Cat 400 ATVs are plagued with problems on the original flywheels. The additives in the motor oil were dissolving the epoxy that holds the magnets in the flywheel, causing them to detach and scatter throughout the engine.


The bad news is that by the time the problem occurred, no manufacturer would provide warranty repairs.


2 EXPOSED EPOXY

2 DETACHED MAGNET


The good news is that RMSTATOR has manufactured a redesigned flywheel where the magnets are sealed in the flywheel, which reinforces the epoxy and prevents them from detaching. This new flywheel configuration corrects the problem permanently.


Dealership estimates to repair this failure are over $500 in parts alone. RMSTATOR offers you a high quality replacement part that corrects the problem for half the price. The RM11502 flywheel is not only a cost effective way to replace your failed Suzuki or Arctic Cat flywheel, but a great investment when replaced before the failure occurs.


3 SEAL THAT PROTECTS THE MAGNET’S EPOXY FROM OIL ADDITIVES

original-flywheel


improved-flywheel

Specifications:

Flywheel:

Dimensions:

Exterior Diameter: 143 mm
Interior Diameter: 118 mm
Interior Diameter Center Housing: 18 mm
Exterior Diameter Center Housing: 42 mm
Thickness (exterior): 12 mm
Thickness (interior): 13 mm

Puller:
50mm x 1.5 Right hand Female

Flywheel

Dimensions :
Exterior Diameter: 143 mm
Interior Diameter: 120 mm
Interior Diameter Center Housing: 18 mm
Exterior Diameter Center Housing: 42 mm
Thickness (exterior): 12 mm
Thickness (interior): 13 mm
