RMSTATOR SPLYT for Can-Am!
Can-Am models have long needed more power and more reliability from their charging system. RMSTATOR provides this with revolutionary SPLYT technology. This system provides over 150 Watts of increased output with peace of mind from dual voltage regulators. Make the upgrade today!
Why use the SPLYT Technology?
As featured by Dirt Trax television, RMSTATOR SPLYT Technology provides a reliable solution to well-known charging system failures while providing increased output for accessories. Using a dual output stator with two separate 3 phase windings, this system splits the power generated between 2 voltage regulators. Each regulator then operates with only half the load, allowing them to maintain a lower temperature and increase reliability, even at higher power levels.
SERIES Voltage Regulation
This system uses cutting edge SERIES type voltage regulators. Rather than shunting excess power to ground like a typical regulator, it protects the battery from high voltage by disconnecting the stator coils from the regulator and preventing current from being passed on when not needed. This type of voltage regulator generates less heat in the stator windings and regulator body because current from the stator is prevented from flowing when not necessary.
Ultimate reliability
With a stock charging system, voltage regulators are consistently operating within 5% of their maximum capacity, leading to heat and stress related failure. With the RMSTATOR SPLYT system, both SERIES voltage regulators are operating with 40% overhead for long life and stable output.
Better design
Contrary to the original OEM stator that uses one three phase stator winding, the SPLYT stator contains two separate three-phase coil windings. Each of these windings then produces half of the power of the stator, lowering the temperature in each individual coil.
Easy to install
All parts use a Plug & Play design just like the original OEM configuration. No special tools or knowledge is needed to install this system.
Harnesses included
Wiring harnesses are included for easy plug-in connections between the stator, regulator, and battery. This ensures the best possible connections with brand new premium wire and terminals.

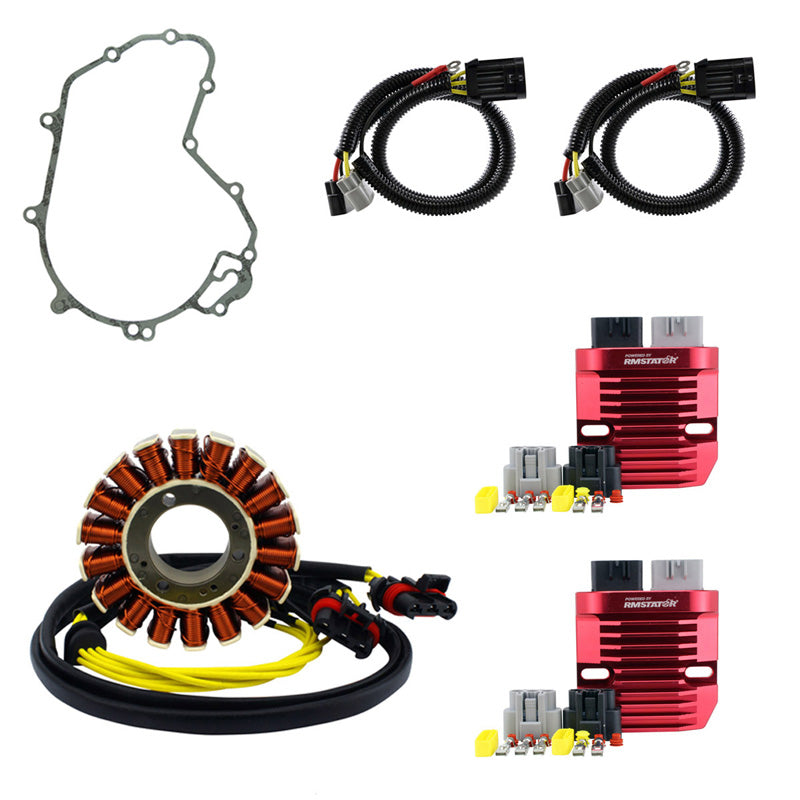

This kit includes:
- RMSTATOR SPLYT Stator
- OEM quality stator cover gasket
- Two SERIES voltage regulators
- Two automotive grade wiring harnesses with OEM-quality heavy-duty connectors and terminals
- Complete installation instructions
All item pictures are accurate, matching exactly what you will receive.
Specifications:
Dual Output Stator:
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 114 mm
Thickness: 25 mm
Length of wires stator to grommet: 150 mm
Length of wires grommet to plug: 820 mm
Other specifications:
Number of wires: 6
Number of plugs: 2
Number of pins: 6
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.1 ohms +-20%
Alternator: Yellow to ground = O.L.
Machined Aluminum SERIES Regulator:
Dimensions:
Width: 103 mm
Length: 103 mm
Height: 28 mm
Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20 °C to 85 °C
Conversion Harness:
Dimensions:
Wires length: 600 mm
Number of Yellow wires: 3
Number of Red wires: 1
Number of Black wires: 1
Number of plugs: 3
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
