RMS KIT CAN-AM RENEGADE|OUTLANDER 500-1000 10-18 RMS900-107068
RMS KIT CAN-AM RENEGADE|OUTLANDER 500-1000 10-18 RMS900-107068
Couldn't load pickup availability

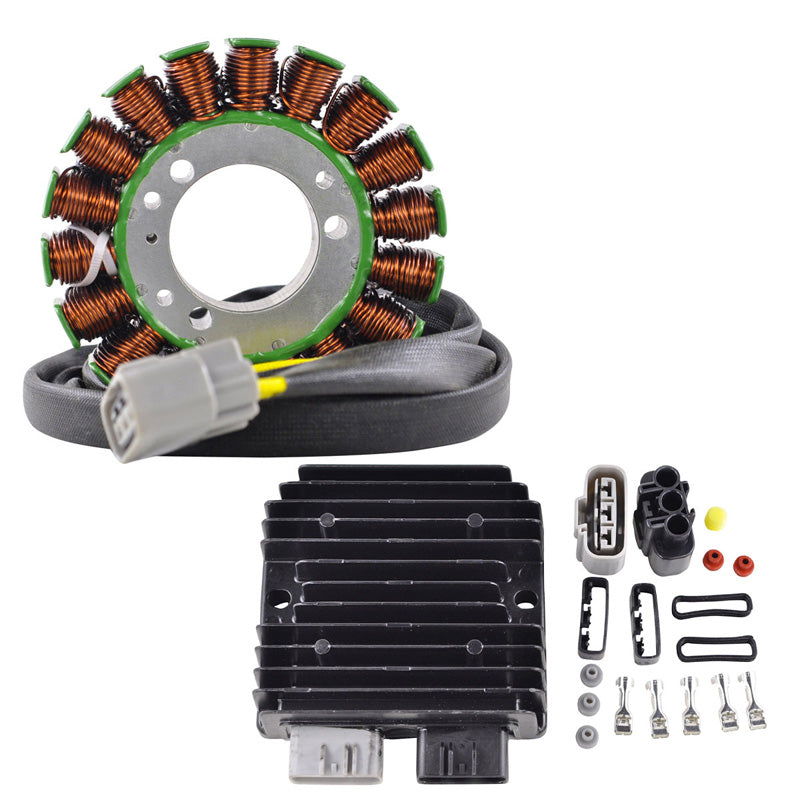

Brand new aftermarket Stator + Voltage Regulator
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- All shipped products are tested
Stator
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
Mosfet Voltage Regulator
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
Extended battery life
Extends the battery s life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Brand new Mosfet Voltage Regulator Rectifier
STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
Specifications:
Stator Dimensions : Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 24 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 1470 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Regulator Dimensions :
Width : 120 mm
Length : 111 mm
Height: 35 mm
Fixation holes center to center : 94 mm
Other specifications :
Number of plugs : 2
Number of pins : 5
Warning:
Battery condition is extremely important. No stator an Regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Fitment notice:
There are two possible regulators for the Outlander 1000 2012 and many Outlander Max 500 models. This regulator fits mostly the European / International versions of these models. Always check in the 'Fits models' section and please compare to your orig
