RMS KIT HON CBR 900 RR 96-99 RM22963

RMS KIT HON CBR 900 RR 96-99 RM22963

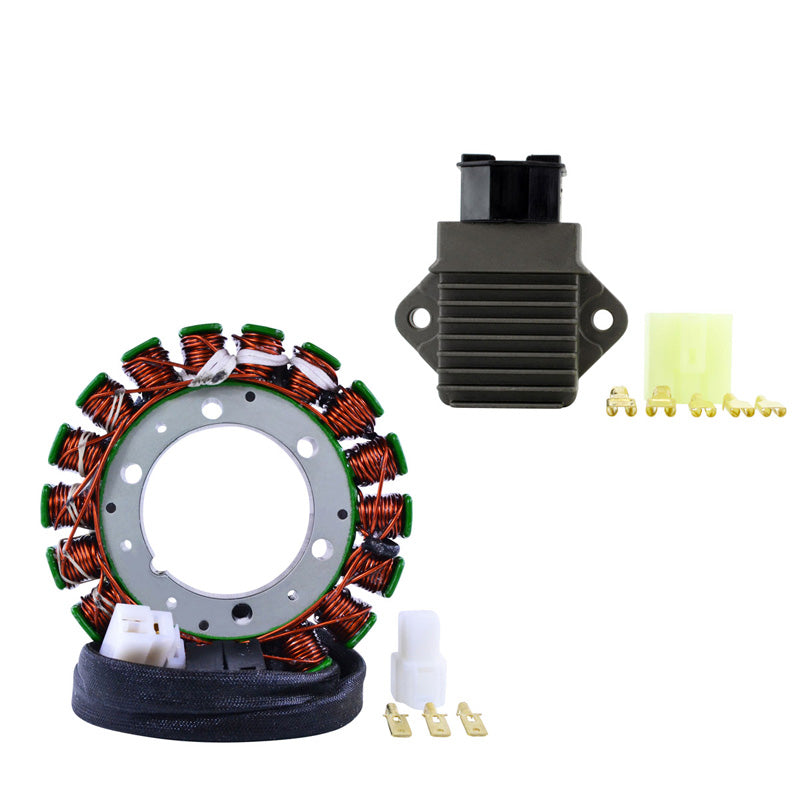

Brand New Kit Stator + Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included

Voltage Regulator Rectifier

• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

Specifications:

Dimensions Stator
Interior diameter: 53 mm
Exterior diameter: 114 mm
Thickness: 16 mm
Length of wires stator to grommet: 1220 mm

Other specifications :
Number of wires: 3
Number of pins: 3

Wire to wire resistance :
Alternator: White Between each White = 0.2 ohms +/-20%

Dimensions Voltage Regulator Rectifier
Width : 44 mm
Length : 83 mm
Height: 21 mm
Fixation holes center to center : 62 mm

Other specifications :
Number of plugs : 1
Number of pins : 5
