RMS KIT HON CR125-500 84-86|SUZ RM125/250 86-93 RM22842

RMS KIT HON CR125-500 84-86|SUZ RM125/250 86-93 RM22842

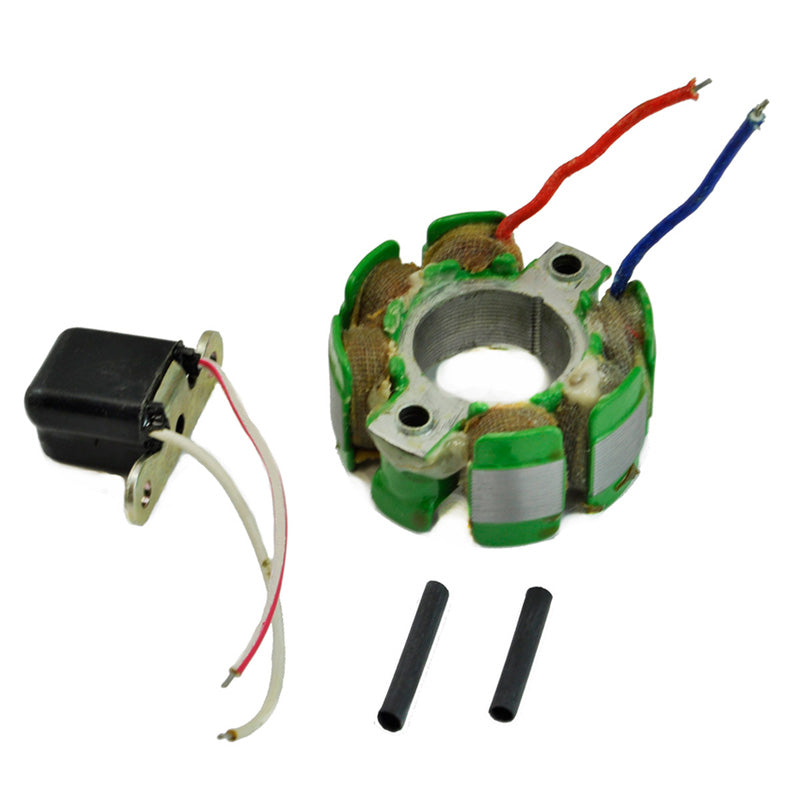

Brand new Stator + Pick-Up Coil Kit

• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Brand new Stator

• You must re-install your original connector and grommet (see picture)
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install
• Higher grade of electric components
• Highest grade of copper winding, resistant to 200 degrees Celsius

Brand new Pick-Up Coil

• We offer a brand new pickup/pulsar coil for you to repair your stator
• Often unavailable from the OEM manufacturer

Specifications:

Stator
Dimensions :
Interior diameter : 28mm
Exterior diameter : 58mm
Thickness : 16mm
Length of wires Stator to terminal : 75mm

Other specifications :
Number of wires : 2
Number of plugs : N/A
Number of pins : 1

Wire to wire resistance :
Source : Blue to Red = 107 ohms +/-20%

Pick up coil
Dimensions :
Height : 25mm
Length : 18mm
Width : 22mm
Fixation holes center to center : 35mm Wire length : 90mm

Wire to wire resistance :
Pink/Red to White = 100 ohms +/-20%
