RMS KIT HON SHADOW|SPIRIT 1100 87-07 RM22968

RMS KIT HON SHADOW|SPIRIT 1100 87-07 RM22968

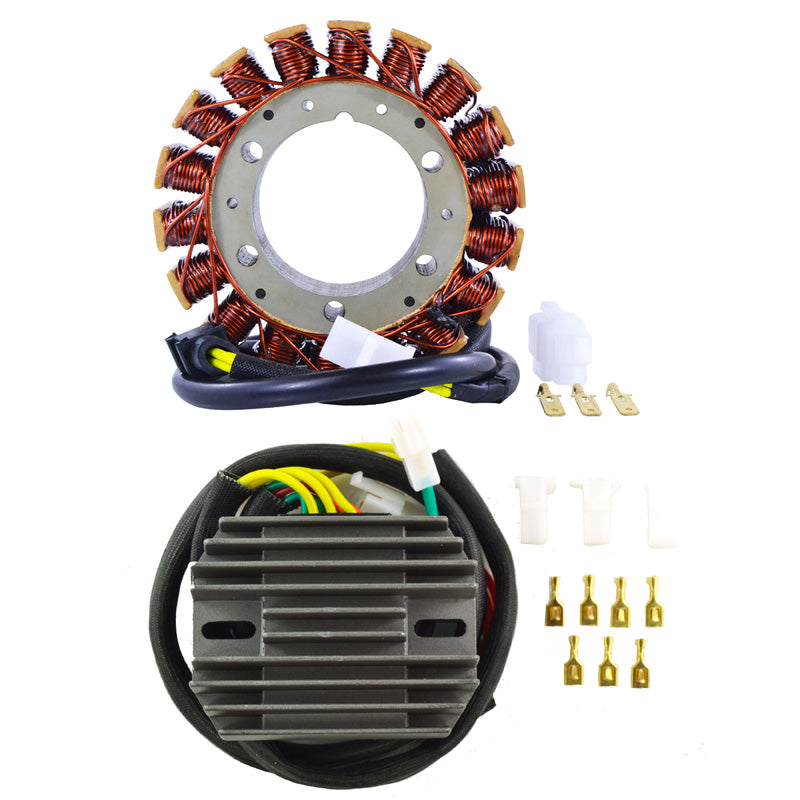

Brand New Kit Stator + Voltage Regulator Rectifier

• All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Generator Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

Specifications:

Dimensions Stator :
Interior diameter : 53mm
Exterior diameter : 115 mm
Thickness : 27 mm
Length of wires stator to plug : 600 mm

Other specifications :
Number of wires : 3
Number of plugs : 0
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Alternator : Yellow to Ground = O.L. on display

Dimensions Regulator:
Width: 80 mm
Length: 103 mm
Height: 32 mm
Wires length: 630 mm & 635 mm br/> Fixation holes center to center: 75 mm

Other specifications :
Number of plugs: 3
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A 300W-200W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
