RMS KIT HON TRX 400 EX SPORTRAX|TRX 400 X 99-13 RMS900-103541

RMS KIT HON TRX 400 EX SPORTRAX|TRX 400 X 99-13 RMS900-103541

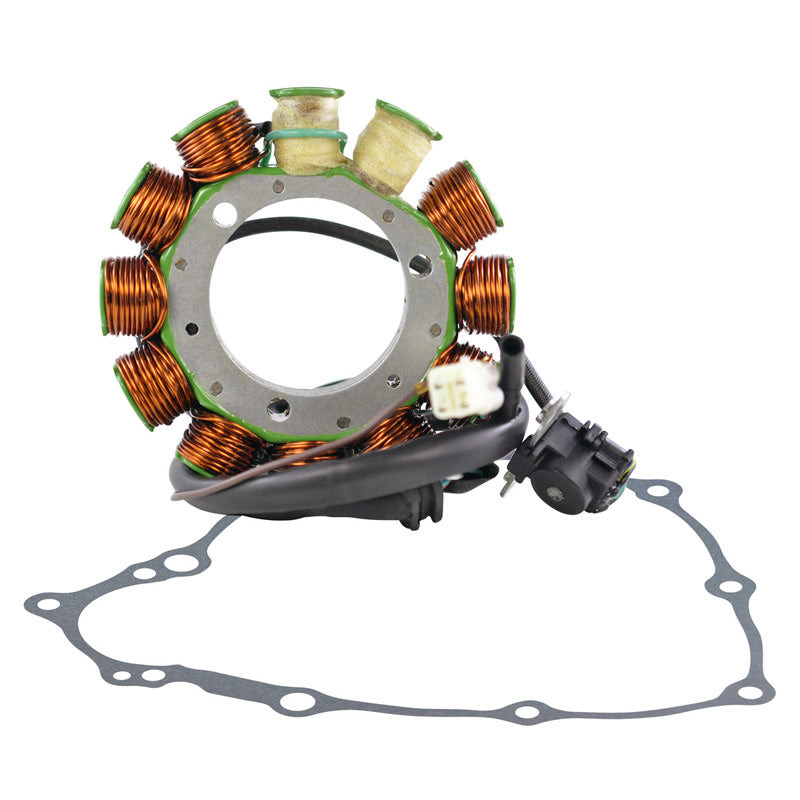

Brand new aftermarket High Output Stator + Crankcase Cover Gasket Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 560 mm
Length of pickup coil's wire to grommet: 250 mm

Other specifications :
Number of wires: 5
Number of plugs: 2
Number of terminals: 5
Alternator: Green to White = 0.4 ohms +/-20%
Pick up: Blue/Yellow to Green/Red = 230 ohms +/-20%
Source: Black/Red to Brown = 90 ohms +/-20%
