RMS KIT HON TRX 450 R 04-05 RM23001

RMS KIT HON TRX 450 R 04-05 RM23001

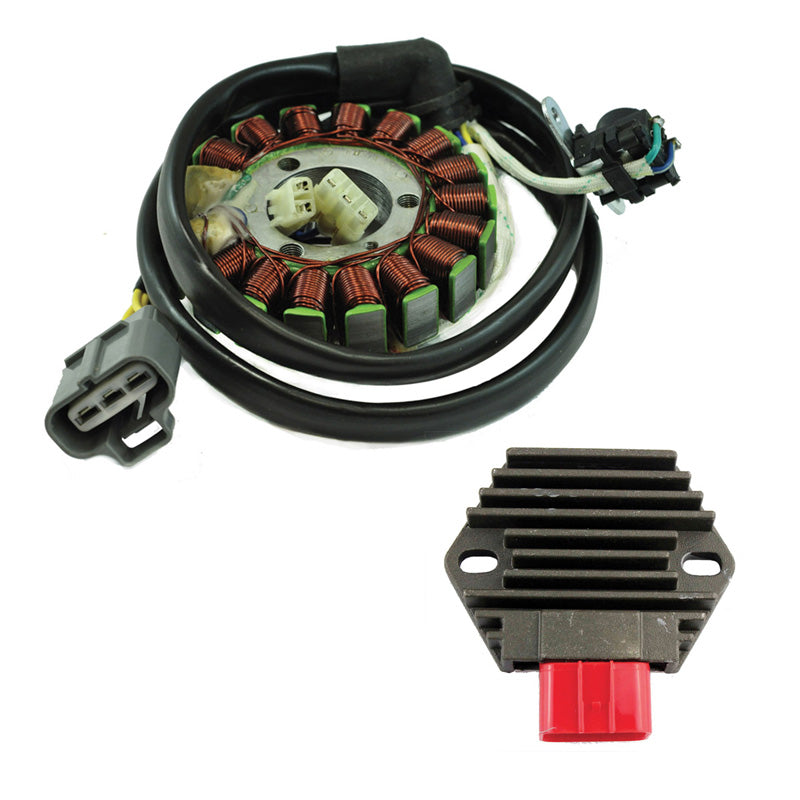

Brand new high output Stator + Voltage Regulator Rectifier Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

High Output Stator:

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Voltage Regulator Rectifier:

• No assembly required
• Higher grade of electric components
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

Specifications:

Dimensions Stator :
Interior diameter : 34mm
Exterior diameter : 92mm
Thickness : 15mm
Length of wires stator to grommet : 75mm
Length of wires grommet to plug : 900mm
Length of pickup coil's wire to grommet : 80mm

Other specifications :
Number of wires : 8
Number of plugs : 3
Number of pins : 8

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Alternator : Yellow to Ground = 0.L
Pickup : Green to Blue = 250ohms +/-20%
Source : Black/Red to Blue = 36ohms +/-20%
Source 2 : Blue to White = 7ohms +/-20%

Dimensions Voltage Regulator Rectifier:
Width : 63mm
Length : 80mm
Height: 22mm
Fixation holes center to center : 60mm

Other specifications :
Number of plugs : 1
Number of pins : 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
