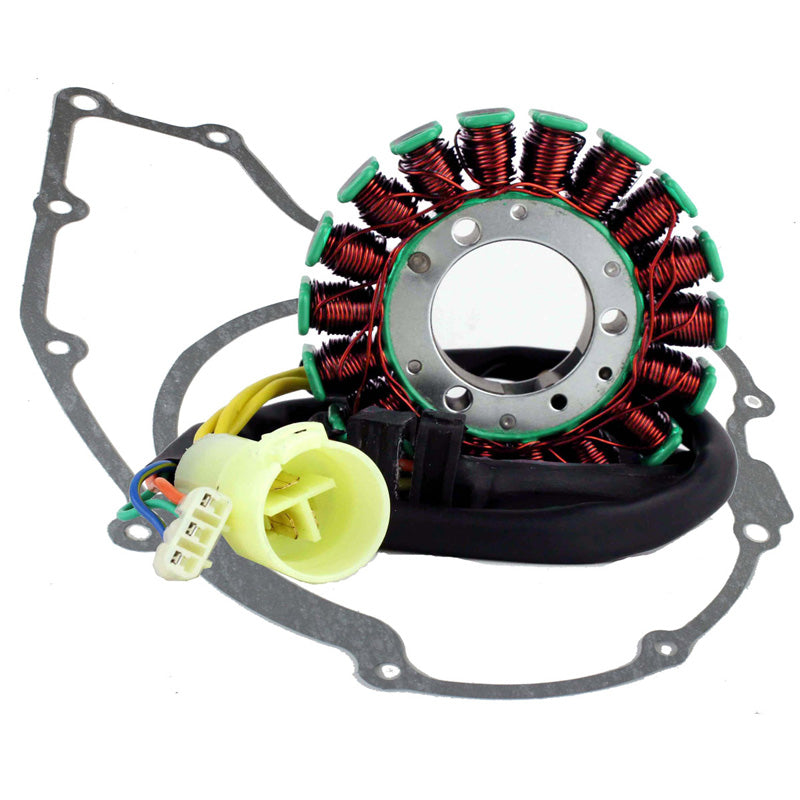

RMS KIT HON TRX300X|EX 93-09 RM01150G

RMS KIT HON TRX300X|EX 93-09 RM01150G

Brand new stator and Gasket kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Gasket included
• Connector included
• Rubber grommet included
• All product shipped are tested

At RMSTATOR, we believe that proper installation guarantees a longer lifetime. This is why we include, at no extra charge, a stator cover gasket and a dielectric grease tube. Consult the connector?s circle of death for more information on dielectric grease.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 35mm
Exterior diameter : 93mm
Thickness : 15mm
Length of wires stator to grommet : 95mm
Length of wires grommet to plug : 75mm 275mm 540mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 7

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
