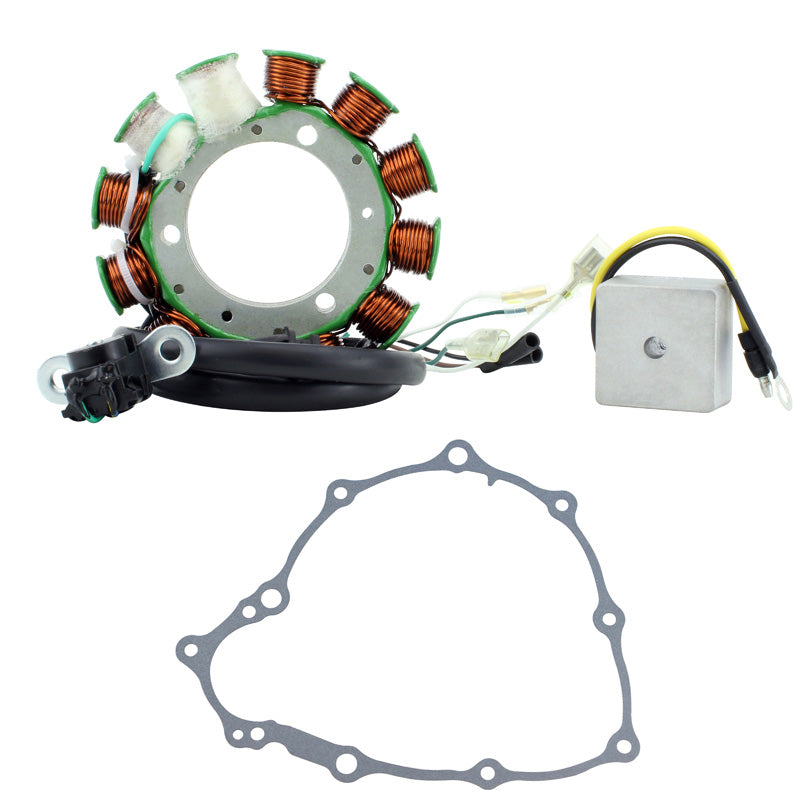

RMS KIT HON XR400R XR 400 R 96-04 RMS900-103542

RMS KIT HON XR400R XR 400 R 96-04 RMS900-103542

High Output Stator 200 W

Dimensions:
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm

Length of wires stator to grommet : 50 mm
Length of wires grommet to plug : 600 mm
Length of pickup coil's wire to grommet : 85 mm

Other specifications:
Number of wires : 8
Number of plugs : 7
Number of pins: 8

Wire to wire resistance:
Alternator : Green to White = 0.2 ohms+/-20%
Pick up : Blue/yellow to Green/red = 250 ohms+/-20%
Source : Black/Red to Brown = 100 ohms+/-20%

Heavy Duty AC Voltage Regulator Rectifier

Dimensions :
Width : 45 mm
Length : 45 mm
Height: 20 mm

Other specifications :
Number of pins : 2
Minimum Charging Voltage: 13 V +/- 0.5 V
Maximum Charging Current: 6 A - 10 A / 50 W - 200 W
Open Circuit Voltage: <15 V
Operation Temperature: -20? to 85?

Please note : this regulator has two wires, yellow to power and black to ground.

Specifications:

Dimensions:
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm

Length of wires stator to grommet : 50 mm
Length of wires grommet to plug : 600 mm
Length of pickup coil's wire to grommet : 85 mm

Other specifications:
Number of wires : 8
Number of plugs : 7
Number of pins: 8

Wire to wire resistance:
Alternator : Green to White = 0.2 ohms+/-20%
Pick up : Blue/yellow to Green/red = 250 ohms+/-20%
Source : Black/Red to Brown = 100 ohms+/-20%

Dimensions :
Width : 45 mm
Length : 45 mm
Height: 20 mm

Other specifications :
Number of pins : 2
Minimum Charging Voltage: 13 V +/- 0.5 V
Maximum Charging Current: 6 A - 10 A / 50 W - 200 W
Open Circuit Voltage: <15 V
Operation Temperature: -20? to 85?

Please note : this regulator has two wires, yellow to power and black to ground.
