RMS KIT KAW KLF 300 BAYOU B 88-91 RM22412

RMS KIT KAW KLF 300 BAYOU B 88-91 RM22412

YOU SAVE 15% off the items price combined, when buying a kit.

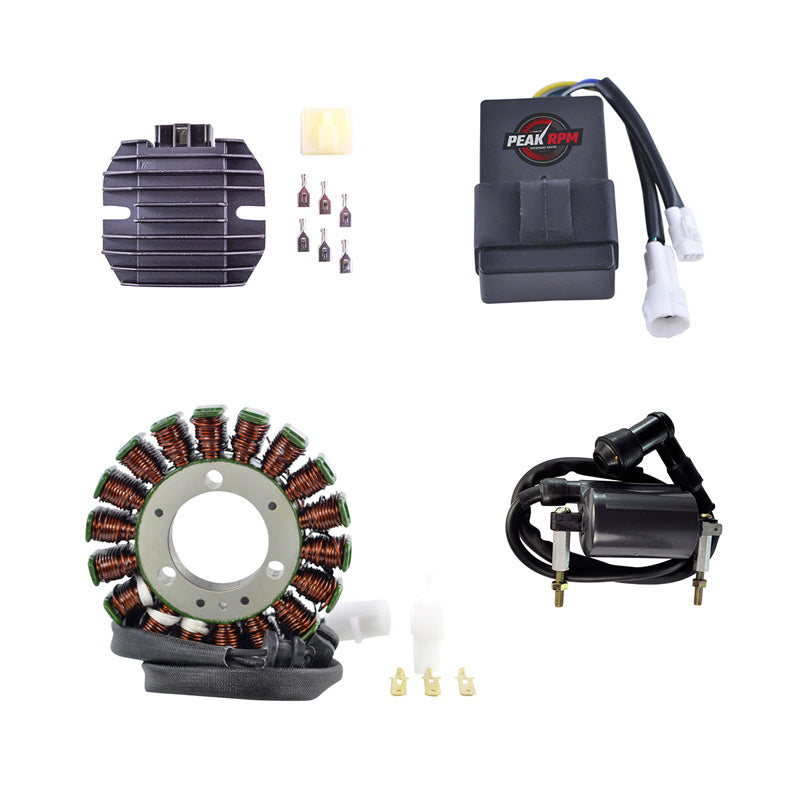

Brand New Kit Stator + Voltage Regulator Rectifier + PeakRPM CDI Box + External Ignition Coil

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Voltage Regulator Rectifier

• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Stator

• Higher grade of electric components
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Grommet included
• Connectors included

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

PeakRPM CDI Box

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

External Ignition Coil

• Highest grade lamination materials

Specifications:

Dimensions Stator :
Interior Diameter: 28 mm
Exterior Diamter: 102 mm
Thickness: 20 mm
Wires length stator to terminals : 700 mm

Other specifications :
Number of wires :3
Number of plugs: 0
Number of terminals : 3

Wire to wire resistance :
Alternator :White Between each White = 0.4 ohms+/-20%

Dimensions Voltage Regulator Rectifier:
Width : 79 mm
Length : 89 mm
Height: 27mm
Fixation holes center to center : 70 mm

Other specifications :
Number of plugs : 1
Number of pins : 6

Dimensions CDI Box :
Height: 22 mm
Length: 80 mm
Width: 74 mm

Other specifications:
Number of plugs: 2
Number of pins: 5

Dimensions External Ignition Coil :
Distance between fixation holes: 102 mm
