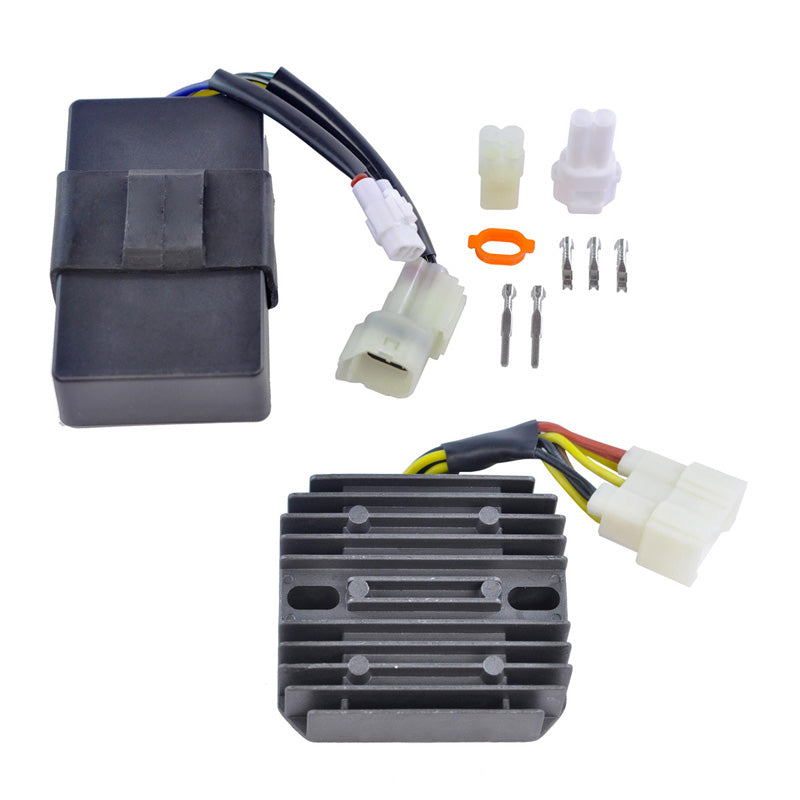

RMS KIT KAW KLF 400 BAYOU 93-99 RM22975

Kit PeakRPM CDI Box + Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• All shipped products are tested

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Brand new PeakRPM CDI Box

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components

Brand new voltage regulator rectifier

• Higher grade of electric components
• Improved heat sink and charging capabilities

Specifications:

CDI Box:
Dimensions:
Height: 25mm
Length: 95mm
Width: 55mm

Other specifications:
Number of plugs: 2
Number of pins: 5

Voltage Regulator Rectifier:
Dimensions :
Width : 80mm
Length : 88mm
Height: 27mm
Fixation holes center to center : 65mm
Wires length: 110mm

Other specifications :
Number of plugs : 1
Number of pins : 6
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
