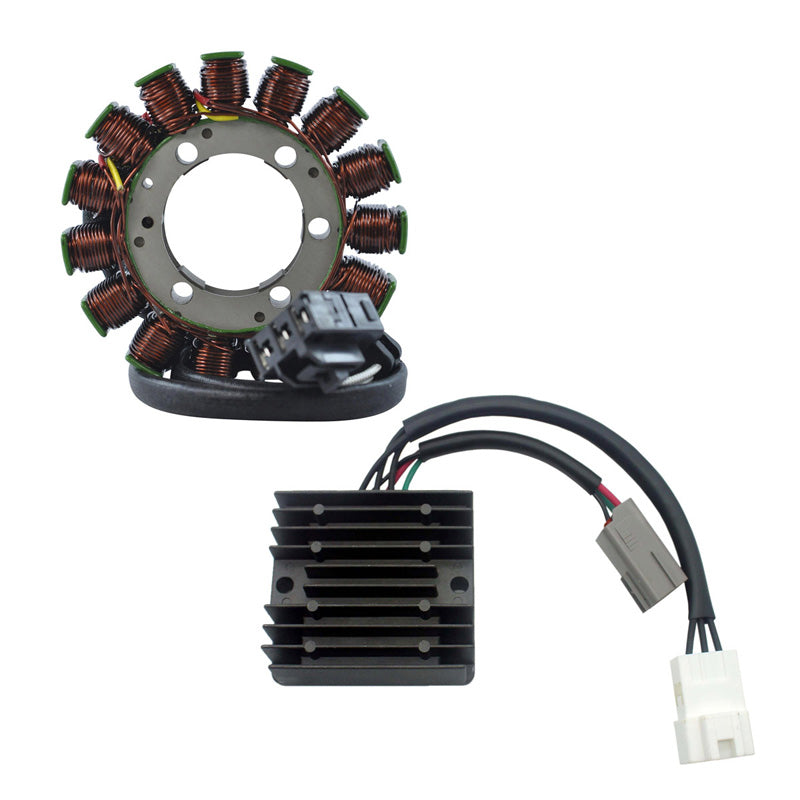

RMS KIT KAW NINJA ZX-6R 07 08 RMS900-100117

Brand New Kit Stator + Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Connector included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Rubber grommet included

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components.

Specifications:

Dimensions :
Interior diameter : 43.4mm
Exterior diameter : 105mm
Thickness : 16.5mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 500mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : White to White = 0.4ohms +/-20%

Dimensions :
Width : 80mm
Length : 94mm
Height: 30mm
Wires length : 300mm 187mm
Fixation holes center to center : 73mm

Other specifications :
Number of plugs : 2
Number of pins : 6
Number of wires: 6
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
