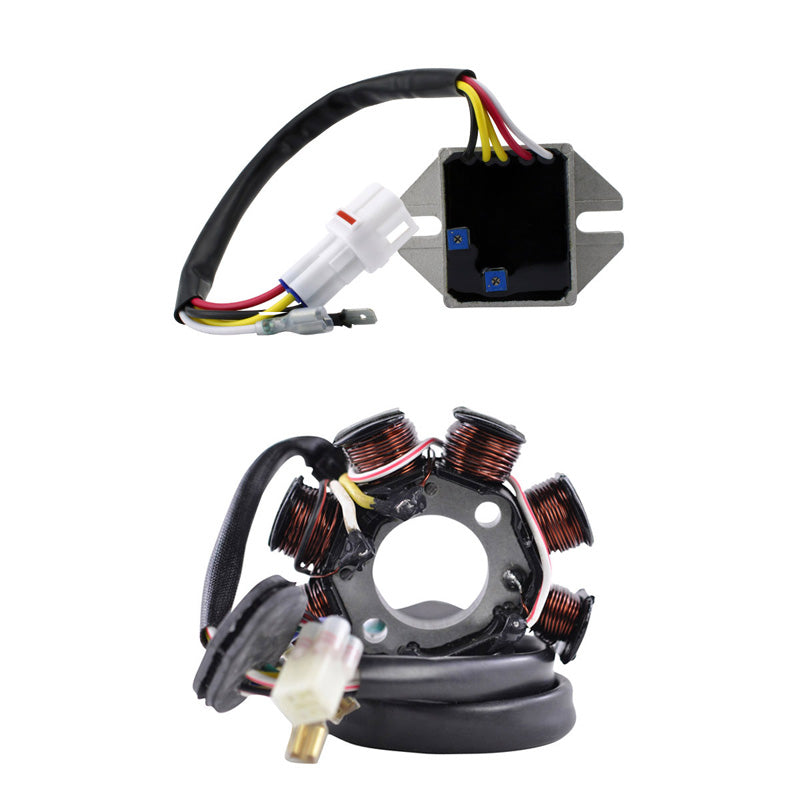

RMS KIT KTM 200-300 XC/W HUSQ TE 250/310 08-16 RMS900-107504

100W converted AC to DC Kit Stator + Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Connectors included
• All products shipped are tested

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Brand new aftermarket stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Rubber grommet included

Brand new aftermarket voltage regulator rectifier

• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment

Specifications:

Stator Specifications:
Dimensions:
Interior diameter: 29 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 450 mm
Length of pickup coil's wire to grommet: 100 mm

Other specifications:
Number of wires: 6
Number of plugs: 3
Number of pins: 6
Number of poles: 8
Wire to wire resistance:
Alternator : Yellow to Yellow = 0.8 ohms +-20%
Pickup: Green to Red = 130 ohms +-20%
Source: White to White = 20 ohms +-20%

Regulator Rectifier Specifications:
Dimensions:
Width: 54 mm
Length: 80 mm
Height: 22 mm
Wires length: 235 mm
Distance between fixation holes center to center: 65 mm

Other specifications:
Number of plugs: 3
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20 °C to 85 °C

Warning:

Battery condition is extremely important. No stator, nor regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
