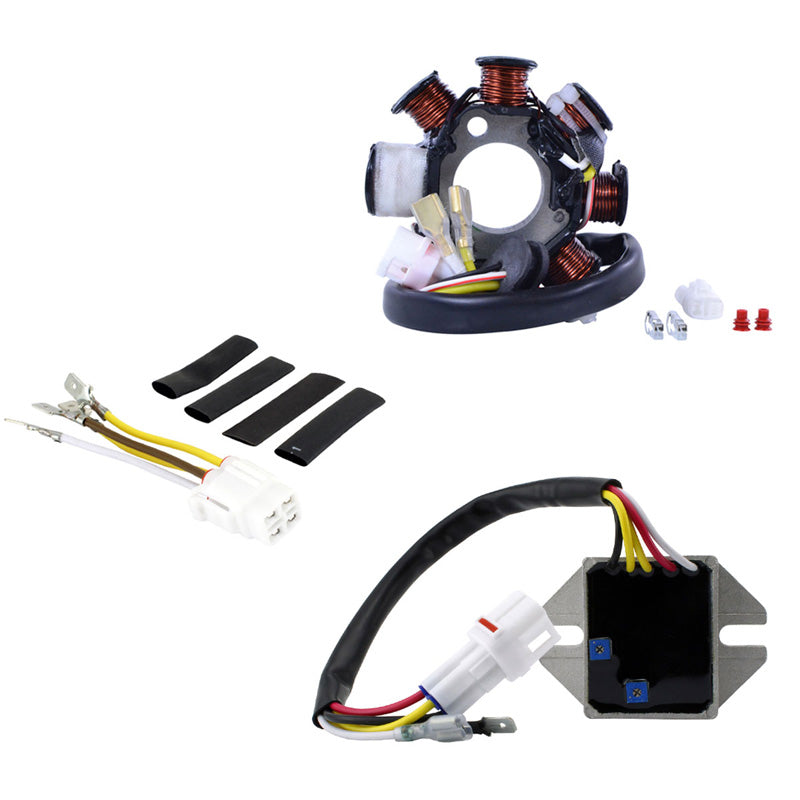

RMS KIT KTM 250-450|HUSQ TE 250/300 06-19 RMS900-107508

100W DC Converted Kit Stator + Voltage Regulator + Harness

• 100 Watt DC charging system
• Replace the OEM stator with 100W high output stator
• Convert your AC system into a high power DC one
• All products shipped are tested

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

• No assembly required
• Higher grade of electric components
• Connectors included
• The quality exceeds the OEM equipment

Specifications:

Stator Specifications:
Dimensions:
Interior diameter: 29 mm
Exterior diameter: 83 mm
Thickness: 13 mm
Length of wires stator to grommet: 60 mm
Length of wires grommet to plug: 490 mm

Other specifications:
Number of wires: 4
Number of plugs: 3
Number of pins: 4
Number of poles: 8
Wire to wire resistance:
Alternator: White to Yellow = 0.5 ohms +-20%
Source: White/Red to Black/Red = 30 ohms +-20%

Regulator Rectifier Specifications:
Dimensions:
Width: 54 mm
Length: 80 mm
Height: 22 mm
Wires length: 235 mm
Distance between fixation holes center to center: 65 mm

Other specifications:
Number of plugs: 3
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20 °C to 85 °C

Harness Specifications:
Dimensions:
Wires length : 80 mm
Number of wires : 4
Number of plugs: 1
Number of pins : 4

Warning:

Battery condition is extremely important. No stator, nor regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
