RMS KIT POL OUTLAW 50|90|RZR 170 07-19 RMS900-107052

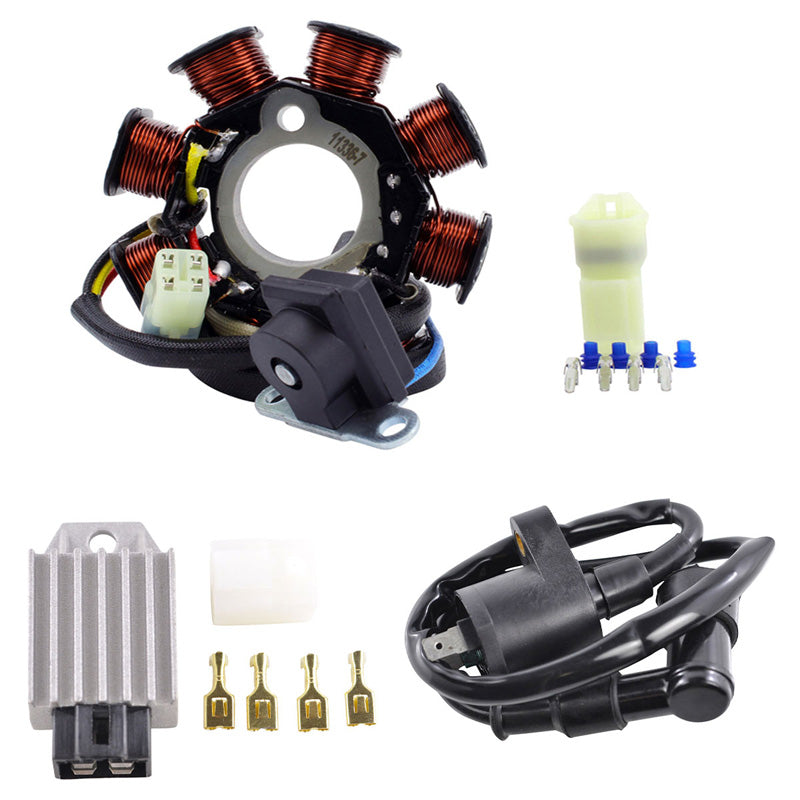

Brand new aftermarket Stator + Voltage Regulator Rectifier + External ignition coil Kit

• All products shipped are tested
• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

Specifications:

Interior diameter : 29 mm
Exterior diameter : 88 mm
Thickness : 12 mm
Length of wires stator to grommet : 155 mm
Length of wires grommet to plug : 265 mm
Length of pickup coil's wire to grommet : 75 mm

Other specifications :
Number of wires : 4
Number of plugs : 1
Number of pins : 4

Wire to wire resistance :
Alternator : Red to Black = 1 ohms +/-20%
Alternator : Yellow to Black = 0.8 ohms +/-20%
Pickup : Blue to Black = 120 ohms +/-20%

Width : 35 mm
Length : 68 mm
Height : 20 mm

Other specifications :
Number of plugs : 1
Number of pins : 4

Warning:

Battery condition is extremely important. No stator and No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
