RMS KIT POL SPORTSMAN|RANGER 500 97-01 RM22815

RMS KIT POL SPORTSMAN|RANGER 500 97-01 RM22815

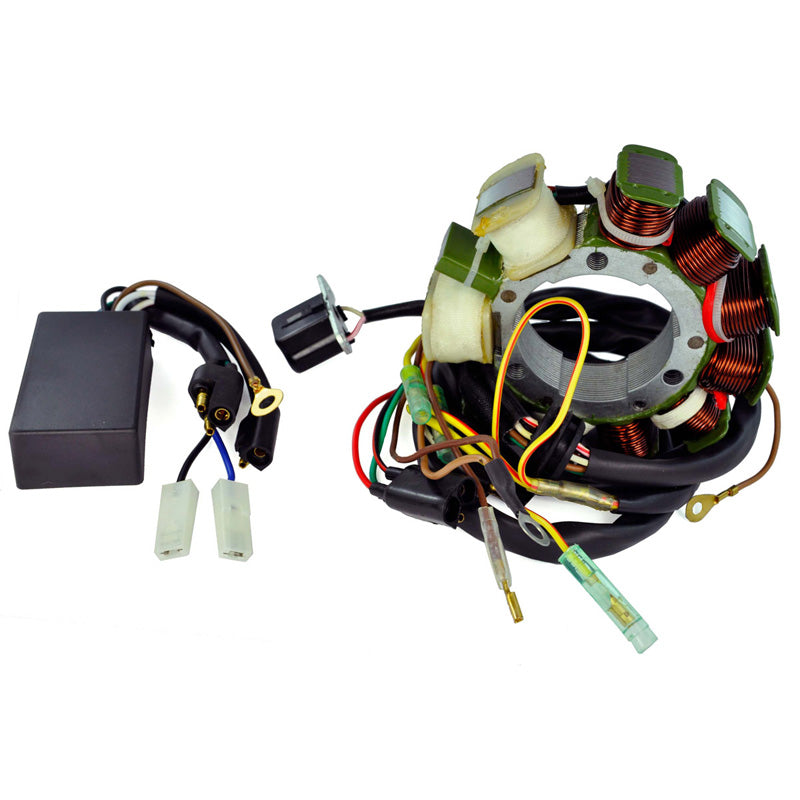

Brand New Kit Stator + PeakRPM CDI Box

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested
• All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

Please Note: there are more than one possible stators and CDI boxes for certain models. Please compare with your original parts.

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

PeakRPM CDI Box:

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

Specifications:

Dimensions:
Interior diameter: 51 mm
Exterior diameter: 114 mm
Thickness: 20 mm

Other specifications:
Number of wires: 9
Number of plugs: 7
Number of pins: 10

Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.4 ohms +/-20%
Pickup: White to White/Red = 100 ohms =+/-20%
Source Green to Red = 450 ohms =+/-20%
Source 2: Green to Black/Red = 3.8 ohms =+/-20%

Dimensions CDI Box:
Height: 70 mm
Length: 23 mm
Width: 38 mm

Other specifications:
Number of plugs: 5
Number of pins: 8

Fitment notice:

There are two possible stators for many Polaris models :

For the Magnum 500, Big Boss 500, Scrambler 500 and Sportsman 500 2000. This kit only fits stators with S# 00-01960 and before.

Always check in the 'Fits models' section and pl
