RMS KIT POL SPORTSMAN|RANGER|RZR 800 06-12 RMS900-108154

RMS KIT POL SPORTSMAN|RANGER|RZR 800 06-12 RMS900-108154

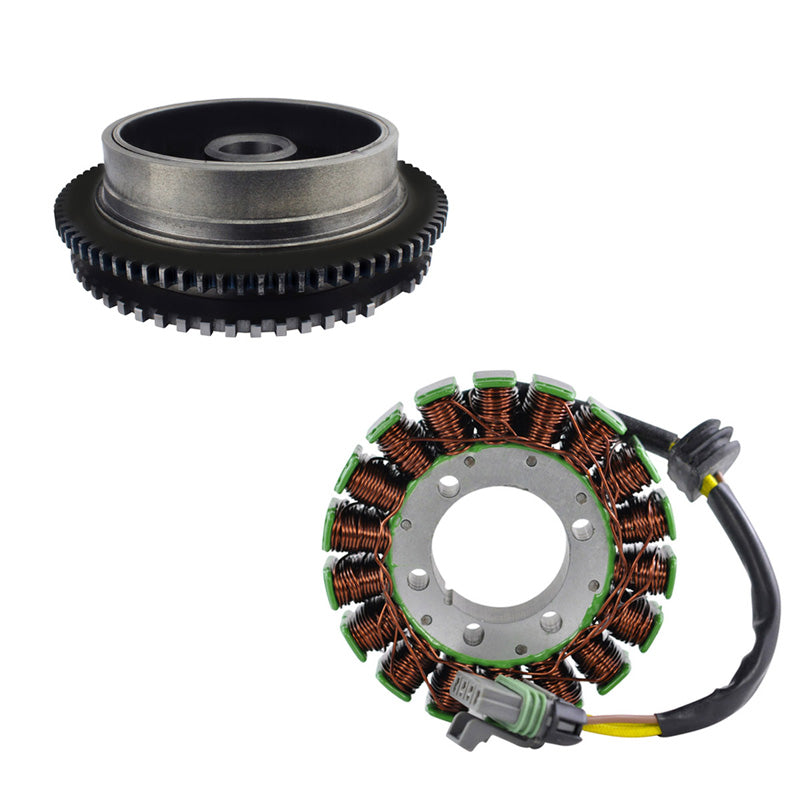

Brand-new kit stator and magneto flywheel rotor.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest-grade lamination materials.
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Connector included.
• Rubber grommet included.
• All products shipped are tested.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Specifications of stator:

Dimensions:
Interior diameter: 40 mm
Exterior diameter: 106 mm
Thickness: 24 mm
Length of wire stator to grommet: 45 mm
Length of wire grommet to plug: 100 mm

Other specifications:
Number of wires: 4
Number of plugs: 1
Number of pins: 4

Wire to wire resistance:
Alternator: yellow to yellow = 0.4 ohms +/-20%

Specifications of flywheel:

Dimensions:
Exterior diameter: 167 mm
Interior diameter: 109 mm
Interior diameter center housing: 27 mm
Exterior diameter center housing: 40 mm
Thickness (exterior): 54 mm
Thickness (interior): 43 mm

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note: This part only fits OEM No 4011981 with 6369K and FF9538 stamping on the flywheel.
