RMS KIT SUZ DRZ 400|E|S KAW KLX 400 2000-16 RM22956

RMS KIT SUZ DRZ 400|E|S KAW KLX 400 2000-16 RM22956

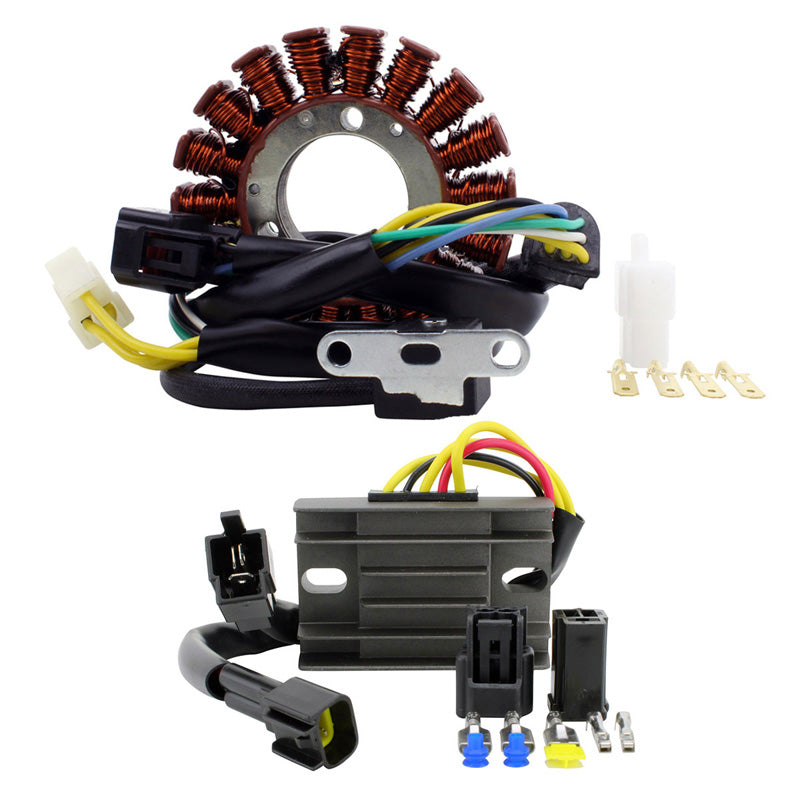

Brand new aftermarket high output stator and voltage regulator rectifier kit

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Brand new high output aftermarket stator

• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

Brand new aftermarket voltage regulator rectifier

• You must re-install one of your original connectors
• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components.

Specifications:

Dimensions Stator :
Interior diameter: 34 mm
Exterior diameter: 93 mm
Thickness: 14 mm
Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 400 mm & 600 mm
Length of pickup coil's wire to grommet: 110 mm

Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7

Wire to wire resistance:
Alternator: = 0.4 ohms +/-20%
Pickup: = 350 ohms =+/-20%
Position Sensor: 0.2 ohms =+/-20%

Dimensions Voltage Regulator Rectifier :
Width : 48 mm
Length : 75 mm
Height: 25 mm
Fixation holes center to center : 60 mm

Other specifications :
Number of plugs : 1
Number of pins : 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 25 A - 35 A / 300 W - 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20? to 85?
