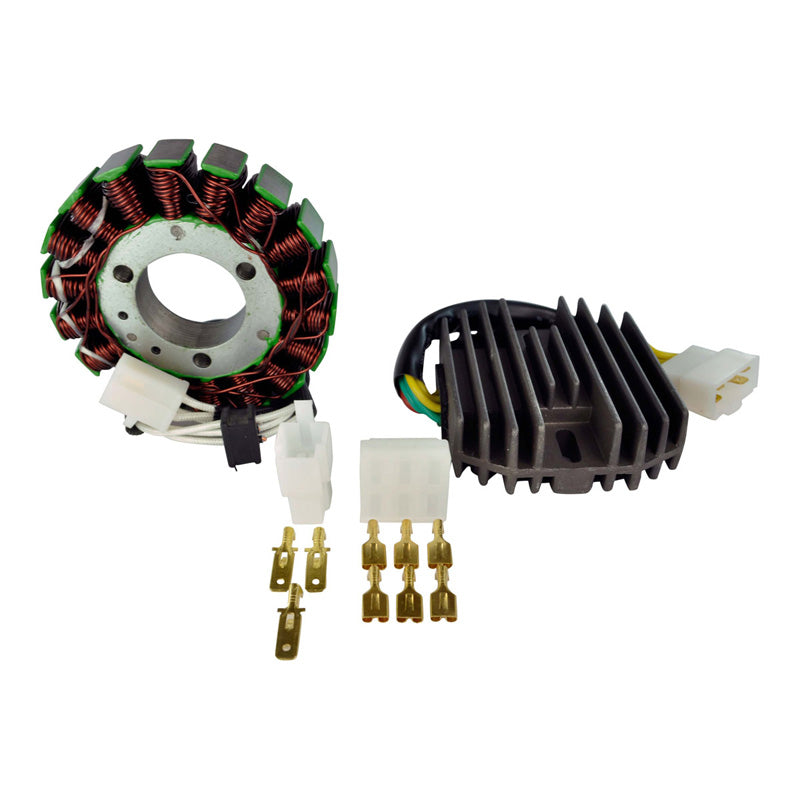

RMS KIT SUZ GSX-R 600 750 00-03 RM22431

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Brand new aftermarket stator

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Voltage regulator rectifier

Brand new aftermarket voltage regulator rectifier

• No assembly required
• Connector included
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Stator
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 102 mm
Thickness : 20 mm
Length of wires stator to terminal : 700 mm



Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : White between each White = 0.6 ohms +/-20%
Alternator : White To Ground = O.L

Voltage regulator rectifier
Dimensions :
Width : 80 mm
Length : 103 mm
Height : 32 mm
Fixation holes center to center : 75 mm

Other specifications :
Number of plugs : 1
Number of pins : 5
