RMS KIT SUZ GSX-R 600 750 06-16 RM01092G

RMS KIT SUZ GSX-R 600 750 06-16 RM01092G

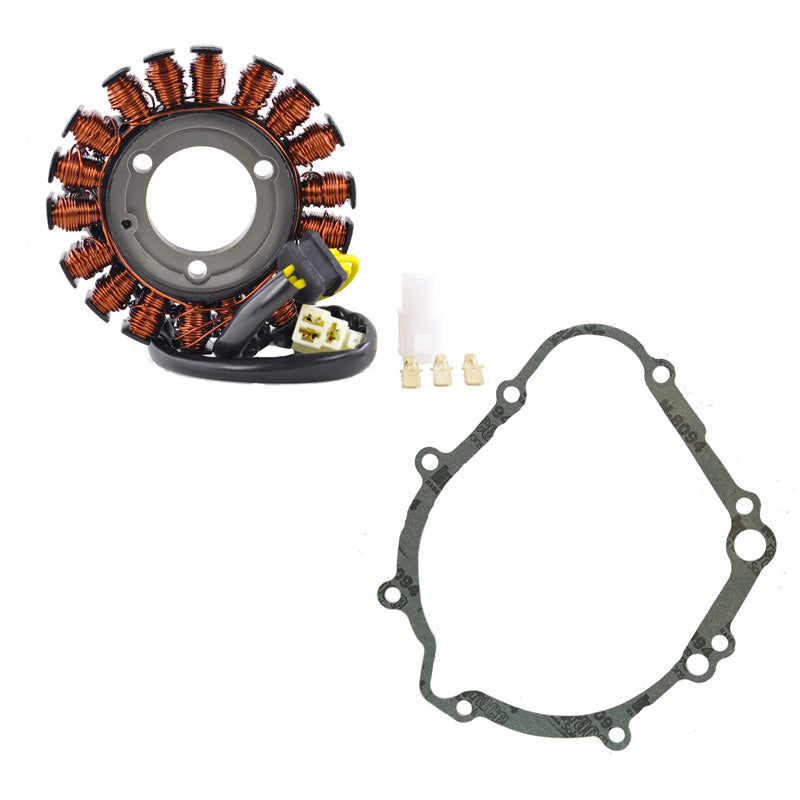

Brand new aftermarket stator and Gasket kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Gasket included
• Connector included
• Rubber grommet included
• All products shipped are tested

At RMSTATOR, we believe that proper installation guarantees a longer lifetime. This is why we include, at no extra charge, a stator cover gasket and a dielectric grease tube.
Consult the connector?s circle of death for more information on dielectric grease.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter: 38 mm
Exterior diameter: 107 mm
Thickness: 12 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 330 mm

Other specifications:
Number of wires:3
Number of plugs: 1
Number of pins: 3

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms +/-20%
