RMS KIT SUZ LTA|LTF400|A-C TRV|TBX 650 02-11 RM23016

RMS KIT SUZ LTA|LTF400|A-C TRV|TBX 650 02-11 RM23016

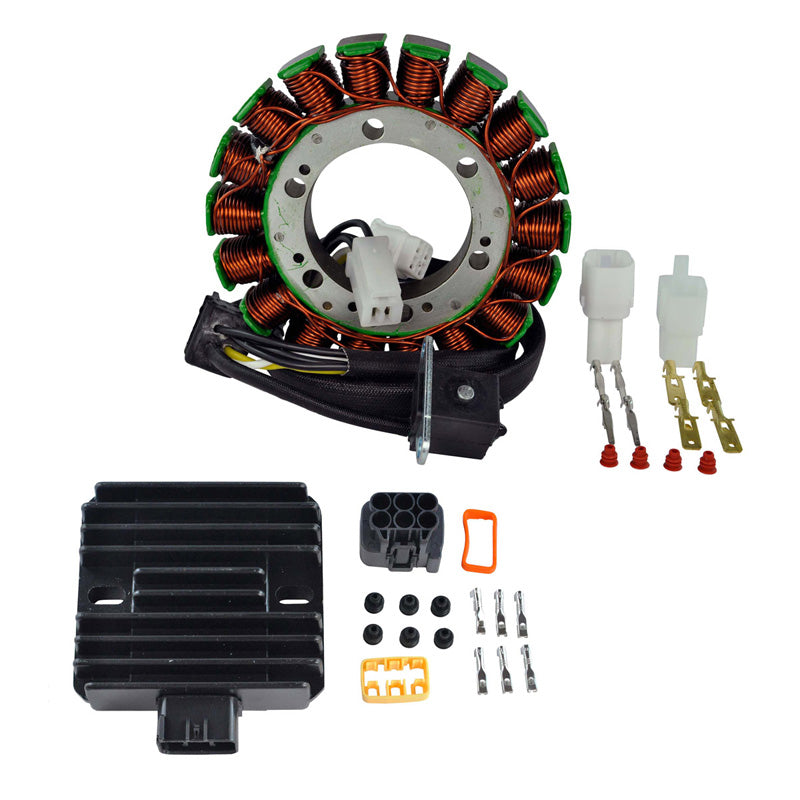

Brand New Aftermarket Generator Stator + Voltage Regulator Rectifier Kit.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• All shipped products are tested.

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Brand new generator stator

• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included.
• Rubber grommet included.

Brand new voltage regulator rectifier

• No assembly required.
• Higher grade of electric components.
• Improved heat sink and charging capabilities.
• The quality exceeds the OEM equipment.
• Connector included.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Specifications:

Generator Stator

Dimensions:
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm

Other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 7

Wire to wire resistance:
Alternator: White Between each White = 0.4 ohms+/-20%
Alternator: White to Ground = O.L. ON DISPLAY
Pick up Coil: Blue to green = 200 ohms+/- 20%
Position Sensor: White to yellow = 0.2 ohms+/- 20%

Voltage regulator rectifier

Dimensions:
Width: 93 mm
Length: 27 mm
Height: 102 mm



Fixation holes centre to centre: 72 mm

Other specifications:
Number of plugs: 1
Number of pins: 6
