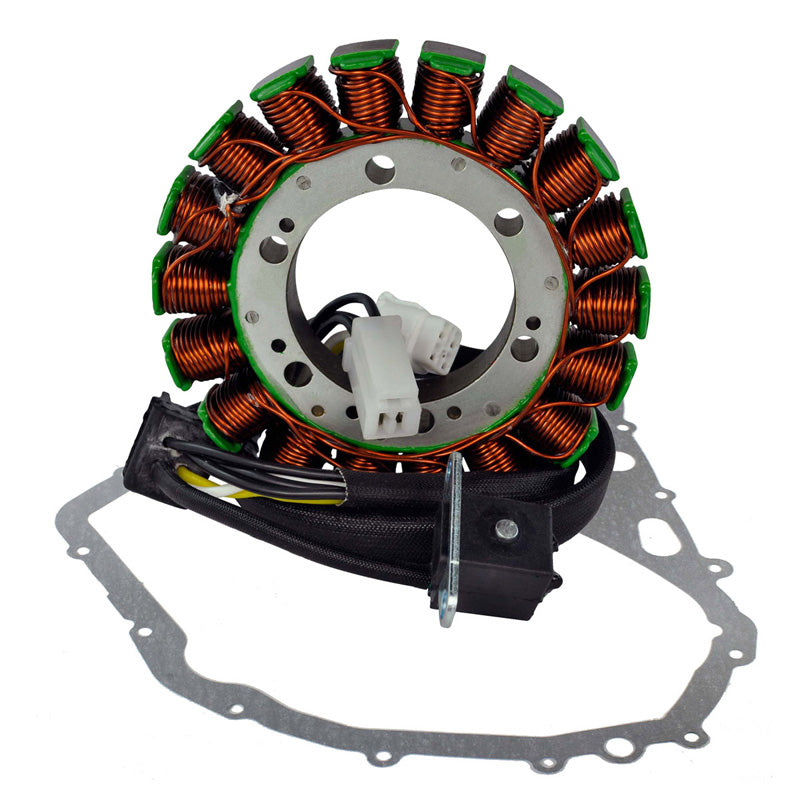

RMS KIT SUZ LTF 400 EIGER|A-C 400 MANUAL 02-08 RM01015G

Brand new aftermarket stator + gasket kit.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Connector included.
• Pick-up pulsar coil included.
• Rubber grommet included.
• Gasket included.
• All shipped products are tested.

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

At RMSTATOR, we believe that proper installation guarantees a longer lifetime. This is why we include a stator cover gasket and a dielectric grease tube. Consult the connector circle of death for more information on dielectric grease.

Stator dimensions:

• Interior diameter: 53 mm
• Exterior diameter: 119 mm
• Thickness: 15 mm

Other specifications:

• Number of wires: 7
• Number of plugs: 4
• Number of pins: 7

Wire to wire resistance:

• Alternator: White between each white = 0.4 ohms+/-20%
• Alternator: White to ground = O.L. ON DISPLAY
• Pick-up coil: Blue to green = 200 ohms+/- 20%
• Position sensor: White to yellow = 0.2 ohms+/- 20%
