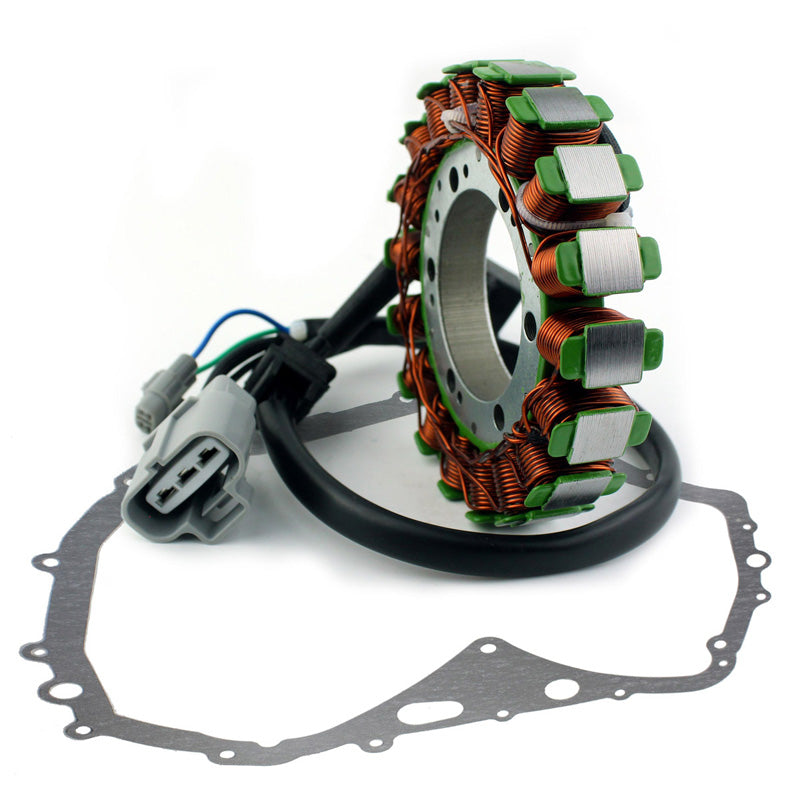

RMS KIT SUZ LTF 400 KINGQUAD 08-16 RM01071G

Brand New Kit Stator + Stator Crankcase Cover Gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Specifications:

Dimensions Stator: :
Interior diameter: 53mm
Exterior diameter: 118mm
Thickness: 15mm
Length of wires stator to grommet: 112mm
Length of wires grommet to plug: 380mm
Length of pickup coil's wire to grommet: 50mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5

Wire to wire resistance:
Alternator: Black between each Black = 0.4ohms +/-20%
Pickup: Blue to Green = 196ohms =+/-20%
