RMS KIT SUZ RM 125 RM 250 94-01 RM22843

RMS KIT SUZ RM 125 RM 250 94-01 RM22843

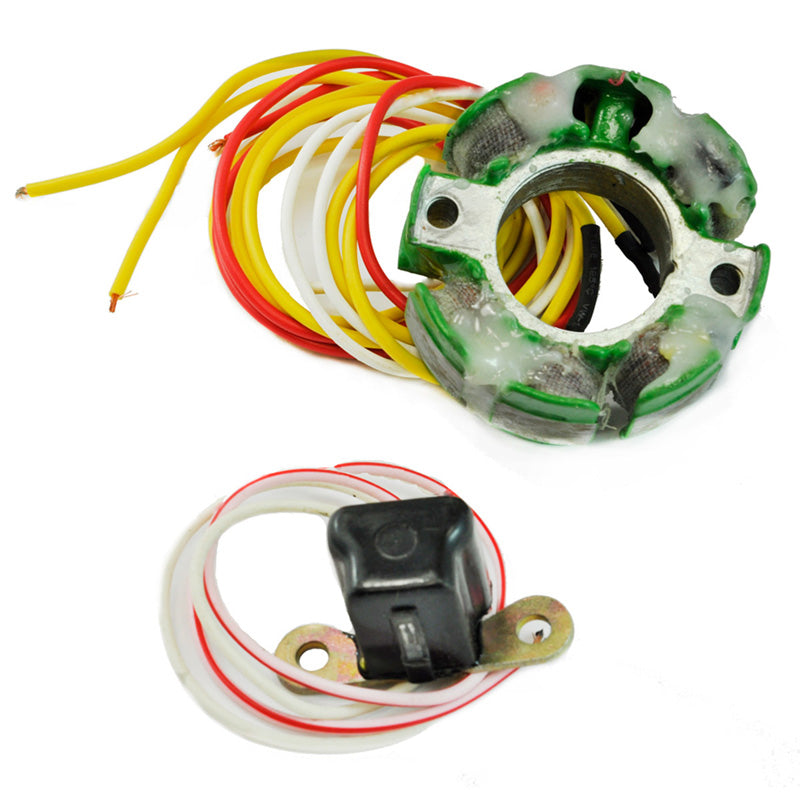

Brand New Kit Stator + Pickup Pulsar Coil

• You must re-install your original connector and grommet (see picture)
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install
• Pickup pulsar coil included (separate)
• Higher grade of electric components
• Highest grade of copper winding, resistant to 200 degrees Celsius
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions Stator :
Interior diameter: 28mm
Exterior diameter: 57mm
Thickness: 15mm
Length of wires stator to terminals: 600mm

Other specifications:
Number of wires: 4
Number of plugs: 0
Number of terminals: 4

Wire to wire resistance:
Source 1 : Red to White = 28 ohms +/-20%
Source 2 : Yellow to Yellow = 0.4 ohms +/- 20%

Dimensions Pickup Pulsar Coil:
Height: 25mm
Length: 22mm
Width: 18mm
Bracket center to center: 35mm
Wires length : 90mm

Other specifications:
Number of wires : 2
Number of pins: 2

Wire to wire resistance:
Pink/Red to White = 100ohms+/-20%
