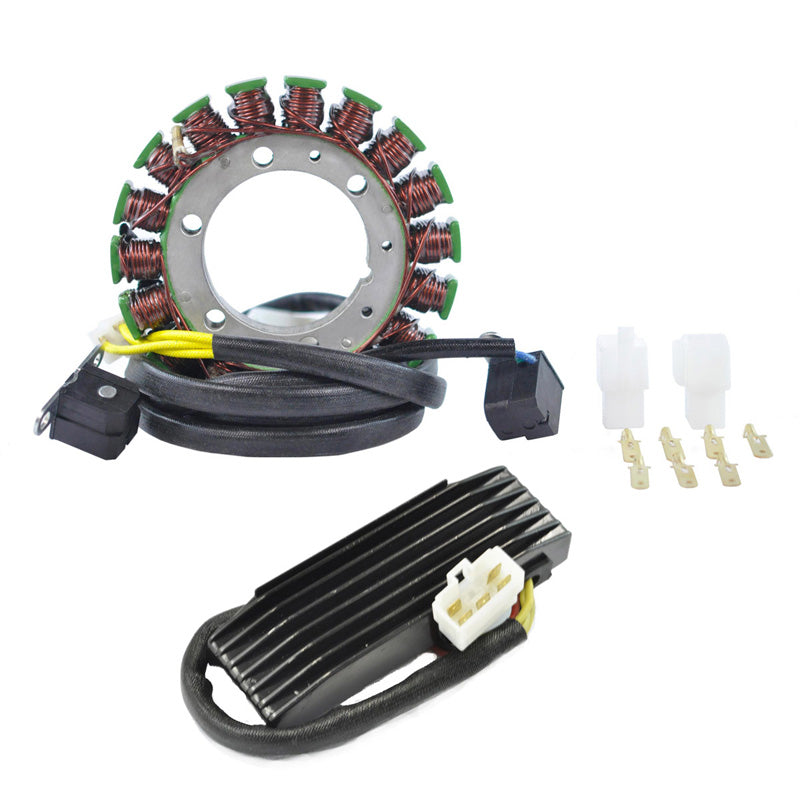

RMS KIT SUZ S83|INTRUDER VS1400 96-09 RMS900-100114

Brand New Kit Stator + Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Connector included
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

Specifications:

Dimensions :
Interior diameter : 54mm
Exterior diameter : 115mm
Thickness : 18mm
Length of wires stator to grommet : 200mm
Length of wires grommet to plug : 620mm
Length of pickup coil's wire to grommet : 90mm & 170mm

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
Pickup : Blue to Green = 200 ohms +/-20%
Source : Black to Yellow = 200 ohms +/-20%

Dimensions:
Width: 50mm
Length: 145mm
Height: 25mm
Wires length: 440mm

Other specifications:
Number of plugs: 1
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Warning:

L ’état de fonctionnement de la batterie a un impact important sur la stabilité du système électrique. Aucun régulateur de tension ne peut fonctionner correctement avec une batterie faible ou défectueuse. Toujours charger votre batterie avant d ’effectuer un test de votre système de charge ou avant de remplacer d ’autres pièces. En cas de doute, faites un test de capacité de votre batterie ou remplacez-la.
