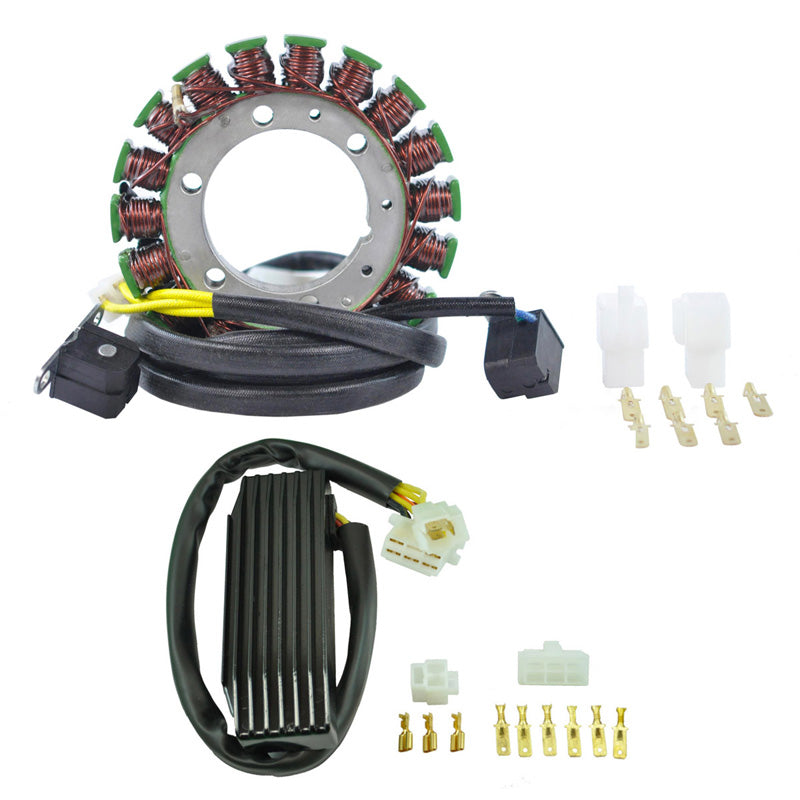

RMS KIT SUZ VS 1400 INTRUDER 87-95 RMS900-100115

Brand New Kit Stator + Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Connector included
• All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Rubber grommet included

• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

Specifications:

Dimensions :
Interior diameter : 54mm
Exterior diameter : 115mm
Thickness : 18mm
Length of wires stator to grommet : 200mm
Length of wires grommet to plug : 620mm
Length of pickup coil's wire to grommet : 90mm & 170mm

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
Pickup : Blue to Green = 200 ohms +/-20%
Source : Black to Yellow = 200 ohms +/-20%

Dimensions :
Width : 50mm
Length : 145mm
Height: 25mm
Wires length : 600mm

Other specifications :
Number of plugs : 2
Number of pins : 8
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
